PRODUCT SPECIFICATIONS

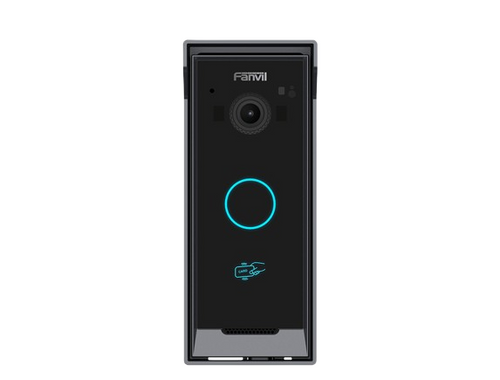

Fanvil i60 SIP Door Phone
The i60 is a compact SIP door phone with a speed dial button and an IP65 rating for indoor and outdoor use. It supports various door-opening methods such as password, Bluetooth, IC/ID card, and DTMF Code for streamlined access management and is equipped with a 2 mega-pixel camera for audio and video communication. Compatible with SIP and ONVIF, it integrates with security systems and is ideal for villas, apartments, and communities.
Key Features
- 1 speed dial button
- Equipped with a 2 mega-pixel HDR high-definition camera, it provides clearer imaging
- IP65 high protection rating with wide temperature rate from
- -40℃ to 70℃, suitable for harsh outdoor environments
- Rich interfaces for security device connectivity
- Supports the standard ONVIF protocol, providing high flexibility and excellent compatibility
Technical Specifications
- Panel Type: Multi-apartment, Community, Villa
- Keyboard: 1 Speed-dial Button
- Body: ABS+PC
- Colors:
- Panel: black
- Housing: Gunmetal
- Sensor: 1/2.9-inch，CMOS
- Camera: 2 Mpx, Support infrared
- Viewing Angle: 140°(FOV) 100°(Horizontal) 57°(Vertical)
- Output video: H.264 (Baseline, Main Profile)
- Light Sensitivity: 0.1Lux
- Card Storage: 1,0000
- Power Consumption:
- PoE: 1.63~6.93W
- Adapter: 1.51~6.16W
- Power Supply
- DC 12V / 1A
- PoE 802.3af Class 3
- Working Temperature: -40℃~+70℃
- Storage temperature: -40℃~+70℃
- Size of the Panel (LWH): 50 x 130 x 30mm
- IP / IK Level: IP65
- Installation:
- Wall-mounted
- Rain cover
- Supported Protocols: SIP 2.0 over UDP/TCP/TLS
- Lock Opening: IC Card，By DTMF Code，Remote Door Opening, BLE
- Interface:
- Wiegand Input/Output
- Short Circuit Input/Output
- Supported Wiegand: 26, 34 bit
- Supported ONVIF Types: Profile S
- Supported Standards:
- DTMF, IC Card, Indoor Switch, BLE
- Cards 13.56 MHz
- Talking Mode: Full duplex (High-definition Audio)
- Additionally: Built-in relay, Motion detection, Tamper Alarm, TF Card, Open API
More Information
MFRPartNum:
i60
