PRODUCT SPECIFICATIONS
Fanvil W610H Cordless Multi-cell System

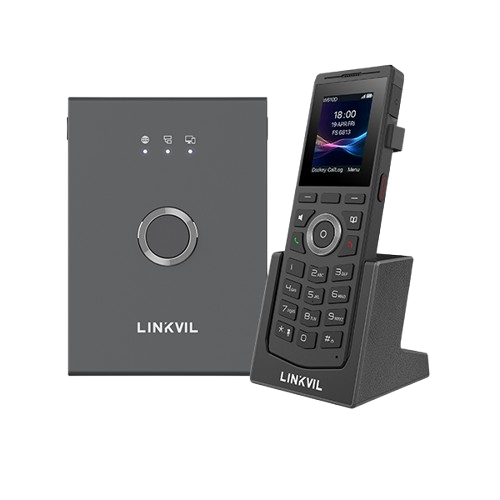

Fanvil LINKVIL W610H Cordless Handset is designed for use with the LINKVIL Cordless Multi-Cell System, delivering reliable wireless communication across large deployments. With support for seamless roaming, high call capacity, and wide coverage when paired with LINKVIL base stations, the W610H is ideal for enterprises, hotels, warehouses, malls, and mobile office environments.
Requires LINKVIL W710H base station (sold separately).
Key Features
- 2' 240 x 320 color screen with intuitive user interface
- Seamless roaming and switching
- HD voice and Noise Reduction
- Support WPA2-PSK encryption algorithm
- Support incoming call vibration
- Sturdy and reliable belt clip to move freely
- Headset connection via Bluetooth or 3.5 mmjack
- Support custom 16 DSS keys
- One configurable push-to-talk (PTT) button for quick dial
- Up to 8 hours’ talk time and up to 160 hours standby time
Technical Specifications
- Generic:
- 2.0-inch 240*320 color high-definition LCD display
- 4 SIP lines
- 1 internal extension
- Caller ID
- Handset/Hands-free/Headset Mode
- Support custom 16 DSS keys
- HD Voice
- Incoming vibration alarm
- Belt clip
- Desktop charging base
- Standard type-c interface
- Rechargeable Lithium Battery
- Support Bluetooth 5.0
- Support multi language: English/Japanese/Korean/French/German/Dutch/Spanish/Italian/Polish/Portuguese/Greek/Turkish/Russian/Chinese/Tra-Chinese
- Phone Features:
- Network time synchronization
- 1000 Local contacts
- Remote Phonebook (XML/LDAP, 1000 entries)
- Multi-language optional
- 600 Call logs
- Blocked List/Allowed List
- Screen saver
- Personalized ringtone settings
- Screen backlight adjustment
- Memorandum
- SMS service
- Voicemail（MWI）
- Menu encryption settings
- Keypad lock/ backlight adjustment
- Volume adjustment
- Call Features:
- Auto-Answering
- Call out/Answer/Reject
- Call waiting/Switch
- Call forwarding
- Speed Dial
- Intercom
- Anonymous calls
- 3-way Conference
- Restrict outgoing calls
- IP direct dial
- Speed Dial
- Emergency call
- Caller ID Display
- Inquiry (dialing, incoming and outgoing calls)
- Do-Not-Disturb
- PTT one-key call
- Audio:
- Acoustic Echo Cancellation (AEC)- maximum 96ms echo delay cancellation
- Voice Activity Detection（VAD）/ Comfort Noise Generation（CNG）/Background Noise Estimation (BNE)
- Packet Loss Concealment
- Dynamic adaptive jitter cache up to 300ms
- DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIPINFO
- Network:
- Encryption: WPA2-PSK
- Country/Region:
- Frequency band: 902-928 MHz（America)
- Power:
- Reminder when charging
- Full reminder
- Low battery prompt
- After abnormal shutdown, the charging will automaticallystar
- Real-time statistics/display of system power
- Physical Specifications:
- Drop Height: 1.8m
- Shell Material: Plastic Shell
- Charging Base x1
- Belt Clip x1
- Rechargeable Battery x1 1900mAh
- DC Input: 5V/2A
- Charging Port: Type-c
- Headphone Jack: 3.5mm Standard Jack
- Installation: Belt Clip /Desktop
- Working Temperature: -10℃ ~ +45℃
- Storage Temperature: -20℃~ 60℃
- Working Humidity:10~95%
- Color: Gunmetal
- Product Size: 156 x 53 x 17.7mm
- Product Weight: 145g
- Qty/CTN: 12pcs
- N.W/CTN: 5.1kg
- G.W/CTN: 6.1kg
- Certificates: CE/FCC/UKCA/RoHS/SRRC/ERP/DOE/CEC/REACH
- Gift Box Dimension: 193x80x89mm
- Outer CTN Dimensions: 343 x 287 x 213mm
