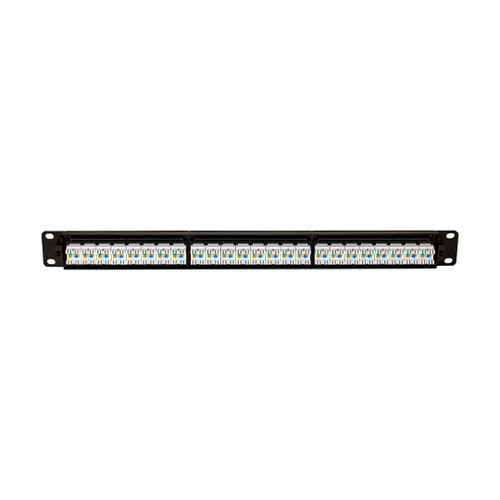

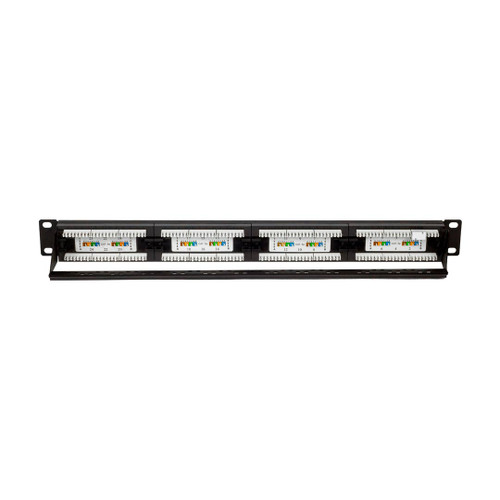

IU-PP-24-5e-F - Cat5e Patch Panel FTP 24 Ports Surge Protection and Grounding
The IU-PP-24-5e-F Cat5e Patch Panel is an essential component for reliable and organized network cabling, ensuring long-term performance and ease of installation in various networking environments.
The IU-PP-24-5e-F Cat5e Patch Panel is designed to offer superior network performance and reliability with its surge protection and grounding features. This 24-port FTP patch panel is constructed to mount easily on any standard 19' rack or cabinet, providing a space-saving, high-density 1U design. The panel features an electrostatic black powder-coated steel construction with phosphor bronze tin-coated over nickel contacts, ensuring durability and compliance with ANSI/TIA/EIA 568B.2 standards. The use of keystone jacks and inserts allows for versatile configurations to suit various networking schemes.
Features
- Standard Compatibility: Designed to mount on any standard 19' rack or cabinet.
- Space-Saving Design: High-density 1U design for efficient use of rack space.
- Durable Construction: Electrostatic black powder-coated steel with phosphor bronze and tin-coated over nickel contacts.
- Versatile Configuration: Utilizes keystone jacks and inserts for flexible network configurations.
- Color-Coded Wiring: TIA/EIA 568A (international) and 568B (AT&T standard) color-coded for easy installation.
- Wide Termination Acceptance: Supports 22, 24, and 26 AWG solid wires.
- Corrosion Resistance: Metal sheet construction is corrosion-resistant.
- High-Strength Materials: Made with high-strength plastic for enhanced durability.
Applications
- Enterprise Networks: Ideal for structured cabling in enterprise networks.
- Data Centers: Suitable for high-density cabling solutions in data centers.
- Telecom Rooms: Perfect for organizing network cables in telecommunications rooms.
- Home Networks: Reliable for home networking setups requiring organized cabling.
Technical Description
- Standards Compliance: Meets TIA/EIA-568-A, TIA/EIA-568-B, TIA/EIA TSB-40, ISO/IEC 11801 requirements.
- Angle: 180-degree angle type (horizontal).
- Termination Types: 110, KRONE, DUAL types (compatible with 3 types).
- Electrical Standards: Compliant with UL 1863.
- Current Rating: 1.5 Amp Max.
- Voltage Rating: 150 Volts.
- Contact Resistance: 20 mΩ.
- Insulation Resistance: 500MΩ.
- Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz for 1 minute.
- Materials:
- Housing: PC UL94V-0.
- IDC: PC UL94V-0, accepts 22-26 AWG solid wire.
- PCB: FR4 1.6mm (0.04') thickness, 2 layers.
- Contacts: PC UL94V-0, 0.45mm (0.018') diameter phosphor bronze with 3 μ' to 50 μ' gold plating on contact area.
