PRODUCT SPECIFICATIONS

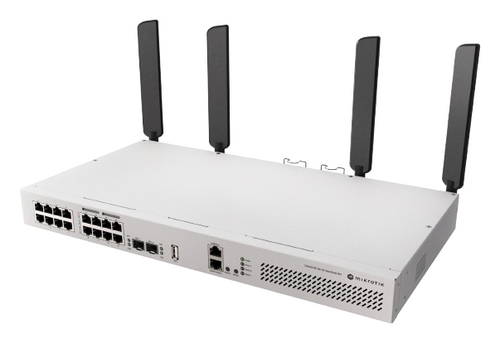

Mikrotik CRS418-8P-8G-2S+5axQ2axQ-RM
The CRS418-8P-8G-2S+RM combines 16 Gigabit Ethernet ports (eight of them with PoE-out!), two 10G SFP+ cages, USB 3 connectivity, and a powerful quad-core 2.2 GHz CPU in a clean, durable rackmount enclosure. Also, there’s a Gigabit management port with a direct CPU line.
Key Features
- 4x4 MIMO
- L3 HW Offloading
- Mighty Quad-core 2.2 GHz ARM CPU
- Dual-redundant power supplies
- 1 GB RAM
- USB 3
- Dual-band Wi-Fi 6
- 16x Gigabit Ethernet ports*
- Note: Gigabit management port with a direct CPU connection
- 2x 10G SFP+ ports
- PoE-out
Technical Specification
- Specification:
- Product code: CRS418-8P-8G-2S+5axQ2axQ-RM
- CPU Quad-Core: IPQ-8072A 2208 MHz
- CPU architecture: ARM 64bit
- RAM: 1 GB, DDR3
- Storage: 128 MB, NAND
- Number of 1G Ethernet ports: 17
- Number of 10G SFP+ ports: 2
- USB ports: 1 USB 3.0 type
- Wireless: 2.4 GHz, 5 GHz
- Wireless protocol: 802.11b/g/n/ax, 802.11a/n/ac/ax
- Wireless interface model: QCN-5024 QCN-5054
- Antenna gain: 5 dBi, 6 dBi
- Number of chains: 4
- Switch chip model: 98DX226S
- Dimensions: 44 x 250 x 443 mm (With antennas 210 x 250 x 443 mm )
- Operating system: RouterOS v7, License level 5
- Operating temperature: -20°C to +70°C
- Powering:
- Number of AC inputs: 2
- AC input range: 100-240 V
- PoE-Out: 802.3af/at
- PoE-Out port: Ether9 - Ether16
- Max out per port output: (input < 30 V) 1.1 A=
- Max out per port output: (input > 30 V) 0.56 A
- Total output power: 150 W
- Max power consumption (without attachments): 43 W
- Max power consumption: 227
- Inckuded parts:
CRS418-8P-8G-2S+5axQ2axQ-RM
