PRODUCT SPECIFICATIONS
SKU: RB260GSP

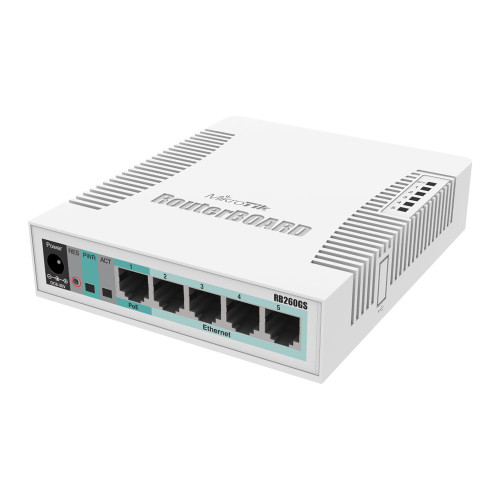

Mikrotik RB260GSP CSS106-1G-4P-1S 5-port Gigabit PoE Managed Switch SFP SwOS
The Mikrotik RB260GS is a small SOHO switch. Two models are available, the RB260GS, and the RB260GSP, which feature power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.
Both devices have five Gigabit Ethernet ports and one SFP cage, switching is done by an Atheros Switch Chip.
The devices are running an operating system designed specifically for
MikroTik Switch products - SwOS.
SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: Allows you to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitations and even adjust some MAC and IP header
fields.
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)
Technical Description
- Product code RB260GSP (CSS106-1G-4P-1S)
- Dimensions 113x139x28mm
- Operating System MikroTik SwOS
- Storage size 128 KB
- Storage type FLASH
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -20°C to 70°C
Powering
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 11-30 V
- Max power consumption 53 W
- Max power consumption without attachments 5 W
- FAN count Passive
- PoE in Passive PoE
- PoE in input Voltage 11-30 V
PoE-out
- PoE-out ports Ether2-Ether5
- PoE out Passive PoE
- Max out per port output (input 18-30 V) 1 A
- Max total out (A) 2 A
Ethernet
- 10/100/1000 Ethernet ports 5
Fiber
- SFP DDMI Yes
- SFP ports 1
Other
- PCB temperature monitor Yes
- Voltage Monitor Yes
Certification & Approvals
- Certification CE, EAC, ROHS
- IP IP20
