PRODUCT SPECIFICATIONS

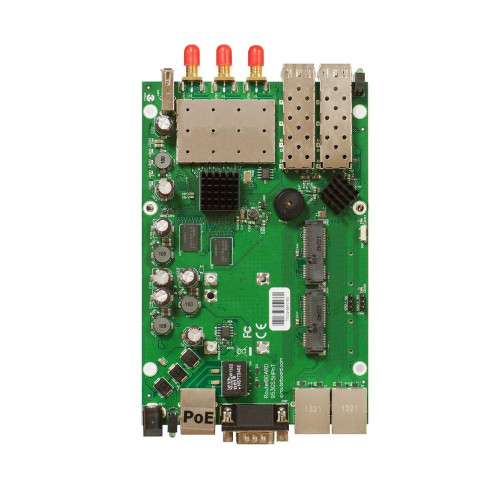

RouterBOARD 953GS-5HnT-RP (US Version) is our first product with 5GHz 3x3 MIMO Triple Chain support. It has a powerful Atheros QCA9558 CPU 802.11a/n wireless support with three RPSMA connectors.
RB953GS-5HnT is equipped with a new Scorpion 720Mhz CPU, 128MB RAM and three Gigabit Ethernet ports, to take advantage of high-speed 3x3 MIMO wireless. Moreover, it comes with two SFP cages to accommodate FTTH and fiber ring requirements.
RB953GS-5HnT-RP-US is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- CPU: QCA9558
- CPU core count: 1
- CPU nominal frequency: 720 MHz
- Dimensions: 183x105x24mm
- License level: 5
- Operating System: RouterOS
- Size of RAM: 128 MB
- Storage size: 128 MB
- Storage type: NAND
- Max Power consumption: 25W
- PoE in: Passive PoE
- PoE in input Voltage: 11-30 V
- Number of DC inputs: 2 (DC jack, PoE-IN)
- DC jack input Voltage: 11-30 V
- Wireless 5 GHz number of chains: 3
- Wireless 5 GHz standards: 802.11a/n
- Wireless 5 GHz chip model: QCA9558
- 10/100/1000 Ethernet ports: 3
- SFP ports: 2
- Number of SIM slots: 2 Modem (Mini SIM)
- MiniPCI-e slots: 2
- Number of USB ports: 1
- Serial port: RS232
- USB Power Reset: Yes
- USB slot type: USB type A
More Information
MFRPartNum:
RB953GS-5HnT-RP-US
