PRODUCT SPECIFICATIONS
LHG 60G – a high-speed 60 GHz CPE point-to-multipoint unit, perfect solution for crowded wireless spectrum.
No need to share the frequency with your neighbors and lose valuable time – LHG 60G offers a simple and effective 60 GHz solution for wireless connection where the 2 GHz and 5GHz wireless space is crowded and unreliable. Connect up to eight of these units to a 60 GHz access point, such as our wAP60G AP or wAP 60Gx3 AP, and enjoy the smooth connection with data rate up to 2 Gbps.
The effective point-to-point distance between two LHG 60G units is up to 1500 meters, point-to-multipoint – up to 800 meters. The grid design ensures protection against wind, it can withstand temperatures from -40 C° to +70 C°. The antenna element is built into the wireless unit – no loss on cables.

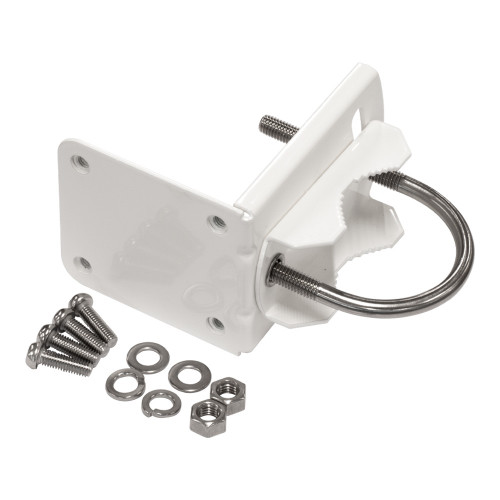

LHG 60G is shipped with an Aim tool for easy precision alignment and strong metal LHG mount.
Technical Description
Product code: RBLHGG-60ad
CPU: Quad-core ARM Cortex A7, 716 MHz
Size of RAM: 256 MB
Storage 16 MB Flash
10/100/1000 Ethernet ports: 1
Wireless: Built-in 60 GHz 802.11ad
Wireless chip model: QCA6335
PoE in: 802.3af/at
Supported input voltage: 12 V - 57 V (802.3af/at and passive PoE)
Operating temperature: -40 C .. +70 C
Dimensions: Ø 391 x 222 mm
Max power consumption: 5 W
License level: 3
