PRODUCT SPECIFICATIONS

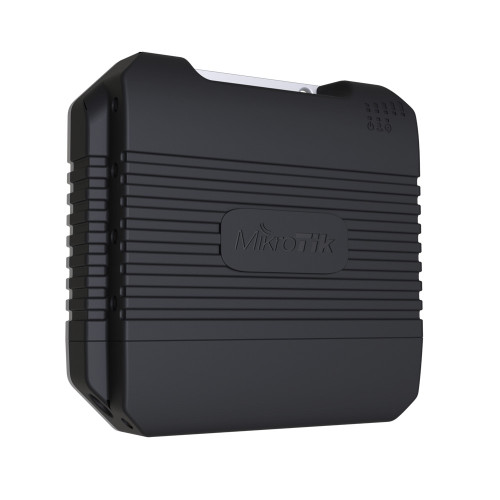

Introducing LtAP LTE kit– a heavy-duty 4G (LTE) access point with GPS support.
The new LtAP LTE kit is a compact 4G (LTE) capable weatherproof wireless access point – perfect for busy urban environment or off-the-grid outdoors networking. It has a built-in cellular modem that supports 4G (LTE) connectivity – no need for additional devices, it works out of the box.
Its high power 2.4 GHz 802.11b/g/n wireless capability provides secure access to LTE network from your phone or any other wireless device with up to 150 Mbps download speed. You can also use a Gigabit Ethernet LAN port for your wired devices. There are several power options – DC jack, POE-in and automotive.
The rugged and extremely durable case with a special wall mounting kit will be perfect for almost any challenge: from public transportation, food trucks or logistics to harsh winter and stormy desert environment. LtAP can handle any temperature from -40 C° to +70 C°. It is a perfect solution for tracking vehicles in real time. We have provided a simple tracking application example in the RouterOS documentation to help you get started. LtAP even has 3 Mini-SIM slots for easy roaming management. Saves your time and money worldwide!
The unit comes with an extra miniPCIe slot, offering many expansion options. For example, you can install a second LTE modem for redundancy or a 5GHz interface to have dual concurrent 2.4 GHz / 5GHz AP + LTE. Another miniPCIe slot is already populated with the LTE modem.
LtAP has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices.
RBLtAP-2HnD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40.
The new LtAP LTE kit is more than an access point – it is what you need it to be wherever you need it to be.
Technical Description
- Specifications
- Product code: RBLtAP-2HnD&R11e-LTE
- Architecture: MMIPS
- CPU: MT7621A
- CPU core count: 2
- CPU nominal frequency: 880 MHz
- CPU Threads count: 4
- RouterOS license: 4
- Operating System: RouterOS
- Size of RAM: 128 MB
- Storage size: 16 MB
- Storage type: FLASH
- MTBF: Approximately 200'000 hours at 25C
- Tested ambient: -40°C to 50°C
- IPsec hardware acceleration: Yes
- Powering
- Number of DC inputs: 3 (DC jack, PoE-IN, Automotive)
- DC jack input Voltage: 12-30 V
- Automotive input Voltage: 12-27 V
- Max power consumption: 24 W
- Max power consumption without attachments 12 W
- Cooling type: Passive
- PoE in: Passive PoE
- PoE in input Voltage: 12-30 V
- Mobile
- 2G Category: Class12
- 2G bands: 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
- 3G Category : R7 (21Mbps Downlinks, 5.76Mbps Uplink)
- 3G bands: 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
- LTE Category: 4 (150Mbps Downlink, 50Mbps Uplink)
- LTE FDD bands: 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
- LTE TDD bands: 38 (2600MHz) / 40 (2300MHz)
- TAC: 35565409
- Wireless specifications
- Wireless 2.4 GHz Max data rate: 300 Mbit/s
- Wireless 2.4 GHz number of chains: 2
- Wireless 2.4 GHz standards: 802.11b/g/n
- Antenna gain dBi for 2.4 GHz: 2.5
- Wireless 2.4 GHz chip model: AR9382
- Wireless 2.4 GHz generation: Wi-Fi 4
- Ethernet
- 10/100/1000 Ethernet ports: 1
- Peripherals
- Number of SIM slots: 3 Modem (Mini SIM)
- MiniPCI-e slots: 2
- Serial console port: RS232
- Number of USB ports: 1
- USB Power Reset: Yes
- USB slot type: USB type A
- Max USB current (A): 1
