PRODUCT SPECIFICATIONS

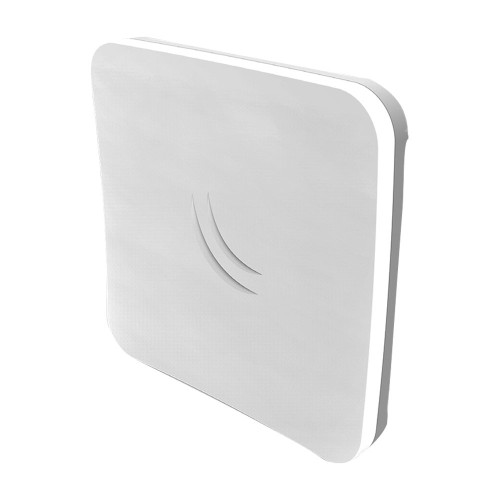

The SXTsq 5 ac is a compact and lightweight outdoor 5Ghz 802.11ac wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.
The SXTsq 5 ac retains a 16 dBi antenna like the SXT 5 ac, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.
SXTsq 5 ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Technical Description
- Specifications
- Product code: RBSXTsqG-5acD
- Architecture: ARM 32bit
- CPU: IPQ-4018
- CPU core count: 4
- CPU nominal frequency: 716 MHz
- Dimensions: 129 x 129 x 34 mm
- RouterOS license: 3
- Operating System: RouterOS
- Size of RAM: 256 MB
- Storage size: 16 MB
- Storage type: FLASH
- MTBF: Approximately 100'000 hours at 25C
- Tested ambient temperature: -40°C to 70°C
- IPsec hardware acceleration: Yes
- Powering
- Number of DC inputs: 1 (PoE-IN)
- Max power consumption: 7 W
- Cooling type: Passive
- PoE in: Passive PoE
- PoE in input Voltage: 10-28 V
- Wireless specifications
- Wireless 5 GHz Max data rate: 867 Mbit/s
- Wireless 5 GHz number of chains: 2
- Wireless 5 GHz standards: 802.11a/n/ac
- Antenna gain dBi for 5 GHz: 16
- Wireless 5 GHz chip model: IPQ-4018
- Wireless 5 GHz generation: Wi-Fi 5
- Ethernet
- 10/100/1000 Ethernet ports: 1
- Certification & Approvals
- Certification: CE, FCC, IC, EAC, ROHS
- IP: IP55
