PRODUCT SPECIFICATIONS

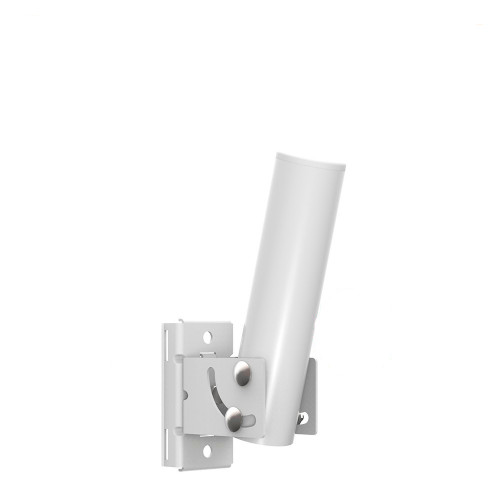

The FlexiMount XL is a pole and surface mount accessory that accommodates both vertical and horizontal pole mounting applications, as well as basic flat wall mounting where minimizing the distance of the radio, relative to the wall, is important. Compared to the FlexiMount, the FlexiMount XL boasts a stronger, more heavy-duty design, a longer pole length and base, and an increased articulation angle of 180º.
Flexible
- Suitable for vertical, horizontal, and angled poles, Mimosa’s FlexiMounts are able to be mounted in any orientation.
Ready-to-Use
- Mimosa’s FlexiMounts come pre-assembled, right out out the box. They are ready for any backhaul, access point, or radio to be attached to them.
Technical Description
- Weight: 0.60 kg (21.3 oz)
- Mounting Base: 45 mm (1.77“) x 127 mm (5.0“)
- Pole Length: 190 mm (7.5“)
- Pole Outside Diameter: 38 mm (1.5“)
- Articulation Angle: 180º
- Mounting Options:
- Pole mount with two pipe clamp or surface mount with two screw hole points
- Assembly:
- Pre-assembled with a white powder coated finish;
- Mounting screws and pipe/hose clamps not included
- Recommended For:
- C5x (native 8 dBi)
- C5x + N5-x12 Horn
- C5x + N5-x16 Horn
- C5x + N5-x20 Dish
- C5x + N5-x25 Dish
- B24
More Information
MFRPartNum:
FlexiMount XL
