Tycon Power Systems

Part:
RPL12/24M-200-170

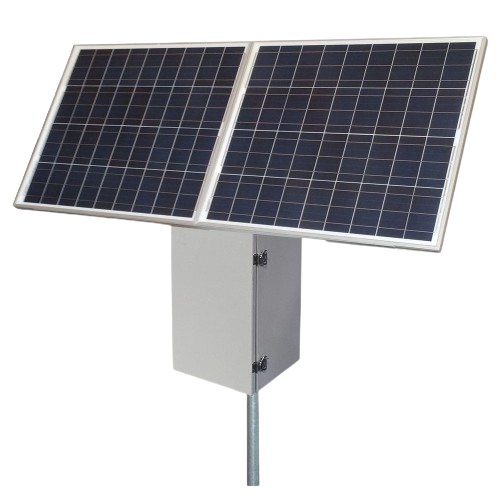

Tycon RemotePro40W Remote Power System. 200Ah Battery. 170W Solar. 12/24V MPPT Controller. Pole/Wall Mount Aluminum Enclosure

$2,299.95
Condition:
New

PRODUCT SPECIFICATIONS

The RemotePro 170W Series outdoor power systems are designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof enclosures have generous space available inside for mounting customer equipment. Multiple mounting brackets are welded inside the enclosure for mounting DIN rails or flat plates.

The systems are available with MPPT temperature compensated solar charge controllers. The solar controllers turn off the load automatically if the battery voltage drops too low, in order to preserve battery life. The load turns on automatically once the battery voltage recovers.

The outdoor enclosures are diamond plate aluminum ground mounted type. They are hinged and gasket sealed with locking closures. They have four cable gland ports for CAT5/6 cable, antenna cables/connectors or other cabling. Included is a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 45°C.

The high quality solar panels have a 25 year power output guarantee and a +5W output tolerance.

Batteries are a Non-Spillable Valve Regulated Sealed Lead Acid Advance Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5 years.

The systems come with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller.

Features

  • Complete 170W Remote Power Solution for Off-Grid Operation
  • Weatherproof Outdoor Enclosures with up to 400Ah Battery
  • Enclosures can be Wall or Pole Mounted (pole not included)
  • High Performance Sealed Lead Acid AGM Batteries
  • MPPT and PWM Solar Charge Controllers, some with PoE output
  • Thermostatically Controlled Ventilation

Applications

  • Wireless Base Stations
  • Remote Lighting
  • Surveillance Cameras
  • Wireless Bridge and Repeaters
  • Off-Grid Power
  • Backup Power

Enclosure Size

  • 21 x 14 x 15 (537 x 356 x 381mm)

System Weight (no batteries)

  • 48 lb (22 kg)

Battery Weight

  • 80.6 lb (36.5 kg)

Technical Description

  • Battery Type: Maintenance Free Non-Spillable Valve Regulated Sealed Lead Acid AGM
  • Battery Life: 5+ years
  • Enclosure Type: ENC-AL-21x14x15 Pole/Wall Mount, Powder Coat Aluminum
  • Internal Mount Features: DIN Rail/Flat Plate Mounting Brackets Welded to Door and Back
  • Solar Panel Dims (L x W x T):
    • 170W Solar Array 62” x 27” x 1.4” (1575 x 678 x 35mm)
  • Operating Temperature: -30°C to +60°C (-22°F to 140°F)
  • Wind Speed Rating: 90MPH

Controller Specific

  • Controller Type: MPPT with display and RS485
  • Controller Outputs:
    • 20A or 30A Wire Terminal
  • Bulk Charge:
    • 14.4V @ 12V Battery
    • 28.8V @ 24V Battery
  • Float Charge:
    • 13.8V @ 12V Battery
    • 27.6V @ 24V Battery
  • Over-discharge protection:
    • 11.1V @ 12V Battery
    • 22.2V @ 24V Battery
    Over-discharge recovery volts:
    • 12.6V @ 12V Battery
    • 25.2V @ 24V Battery
  • Controller Self Consumption: <1W

More Information

MFRPartNum:
RPL12/24M-200-170
Datasheet:
