Tycon Power Systems

Part:
RPS12-100-85

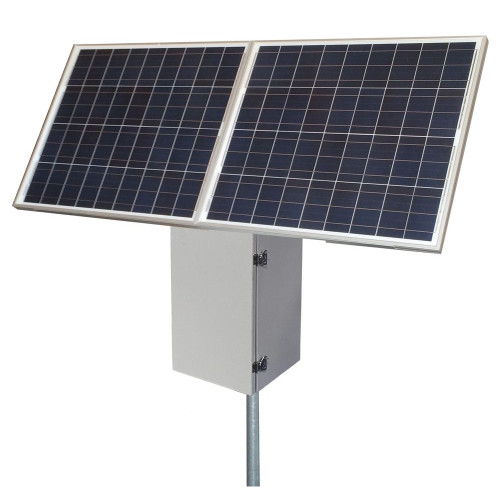

Tycon RemotePro20W Remote Power System. 100Ah Battery. 85W Solar. 12V 20A PWM Controller. Pole/Wall Mount Aluminum Enclosure

$1,199.95
Condition:
New

PRODUCT SPECIFICATIONS

The RemotePro 85W Series outdoor power systems are designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof aluminum enclosures have generous space available inside for mounting customer equipment. Multiple mounting brackets are welded inside the enclosure for mounting DIN rails or flat plates.

The advanced PWM solar controller provides the battery charging function, 24V or 48V 30W Passive PoE output and a 12V 1.5A auxiliary output. The solar controllers turn off the load automatically if the battery voltage drops too low in order to preserve battery life. The load turns on automatically once the battery voltage recovers.

The enclosures are hinged and gasket sealed with a locking closure that accepts a common padlock for security. They have four cable gland ports for CAT5/6 cable, antenna cables/connectors or other cabling. Included is a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 45°C.

The high quality solar panels have a 25 year power output guarantee and a +5W output tolerance. The enclosures and solar mount can be mounted to a wall or pole (2-4”) with the included mounting system.

Batteries are a Non-Spillable Valve Regulated Sealed Lead Acid Advance Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5 years.
The systems come with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller.

Features

  • Complete 85W Remote Power Solution for Off-Grid Operation
  • Weatherproof Aluminum Outdoor Enclosure with up to 100Ah Battery
  • Enclosure can be Wall or Pole Mounted (pole not included)
  • High Performance Sealed Lead Acid AGM Batteries
  • PWM Solar Charge Controllers with PoE output
  • Thermostatically Controlled Ventilation

Applications

  • Wireless Base Stations
  • Surveillance Cameras
  • Wireless Bridge and Repeaters
  • Off-Grid Power
  • Remote Lighting
  • Backup Power Systems

Enclosure Size

  • 12 x 14 x 15" (305 x 356 x 381mm)

System Weight (no batteries)

  • 41 lb (19 kg)

Battery Weight

  • 80.6 lb (36.5 kg)

Technical Description

  • Rated Power Generation: 17W continuous with 6hrs peak sun
  • Reserve Time @ Rated Power: >35hrs
  • 12V Battery Capacity (Amp Hrs): 100Ah
  • Load Out (DC): 12V 20A Wire Terminal
  • Solar Controller Type: TP-SC24-20 20A PWM
  • Battery Voltage (DC): 12VDC
  • Battery Type: Maintenance Free Non-Spillable Valve Regulated Sealed Lead Acid AGM
  • Battery Life: 5+ years
  • Bulk Charge: 14.4 VDC
  • Float Charge: 13.8 VDC
  • Over-discharge protection: 11.1 VDC
  • Over-discharge recovery volts: 12.6 VDC
  • Controller Self Consumption: <0.3W
  • Enclosure Type: ENC-AL-12x14x15 Pole/Wall Mount, Powder Coat Aluminum
  • Internal Mount Features: DIN Rail/Flat Plate Mounting Brackets Welded to Door and Sides
  • Solar Panel Dims (LxWxT): 31” x 27” x 1.4” (780 x 678 x 35mm)
  • Operating Temperature: -30°C to +60°C (-22°F to 140°F)
  • Wind Speed Rating: 90MPH
