PRODUCT SPECIFICATIONS

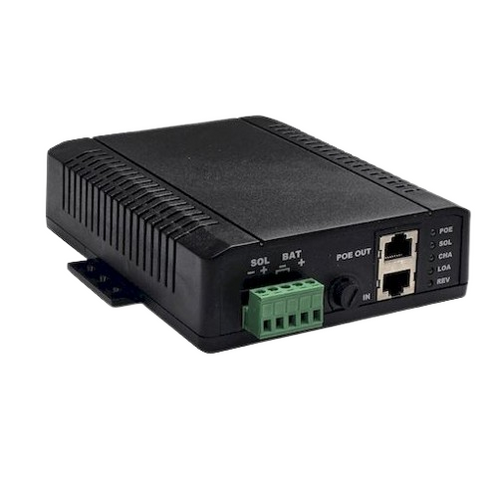

Tycon TS-SCPOE-12AT-G GigE PoE/Solar Charge Controller
Tycon Solar® SCPOE PoE/Solar charge controllers are designed to keep critical systems running by charging batteries using two power sources: Power over Ethernet (PoE) and solar panels. This dual-input setup ensures reliability and uninterrupted operation. When sunlight is available, the controller prioritizes solar power to reduce
reliance on grid electricity.
Key Features
- Dual Input - Charges 12/24V Batteries from Solar Panel and/or 802.3at/bt PoE
- Supports up to 120W/240W Total Device Load
- 802.3at 35W PoE Output
- 10A Aux Output (VOUT = battery voltage)
- Compact and high temperature operation
- Low self consumption < 1.2W
- DIN Rail mount kit included
- Remote Power Systems; Surveillance, Sensors
- Wireless Stations ; AP / Client / Repeaters
- UPS Systems ; Lighting, Fences, Gates
Technical Specification
- Solar Input: 18-25VDC 120W Max
- PoE Input (802.3at/bt or Passive): 36-57VDC 35W Gigabit (1.7A~2.0A Internal Regulated)
- POE IN Pinout: 12.36 or 45.78 2 Pair or 4 Pair
- Battery Voltage: 12VDC
- Battery Type: AGM/GEL Lead Acid or LiFePO4/LFP/Lithium with compatible BMS
- PoE Output Gigabit: 802.3at 56VDC 0.625A 35W
- POE OUT Pinout: 802.3at Mode A Pins 12.36
- Aux Output (Battery Voltage): 12VDC 10A Max
- Charging Voltage: 14.4VDC
- Float Voltage: 13.8VDC
- Low Voltage Detect (LVD):
- Load Output Off: 11.0 +/-0.3V
- Load Output On: 12.0 +/-0.3V
- Load-On Self Consumption: < 1W
- Load-Off Self Consumption: 0.04W Typical
- Max Wire Size: 10 AWG
- Battery Fuse: 5mm x 20mm 12A 250V Slo-Blow
- Operating Temp: -40°C to 60°C (-40°F to 140°F)
- Operating Humidity: 5% - 90% Non-Condensing
- Dimensions: 159 x 118 x 40mm (6.3 x 4.6 x 1.6”)
- Weight: 476 g (1.05 lb )
More Information
MFRPartNum:
S-SCPOE-12AT-G
