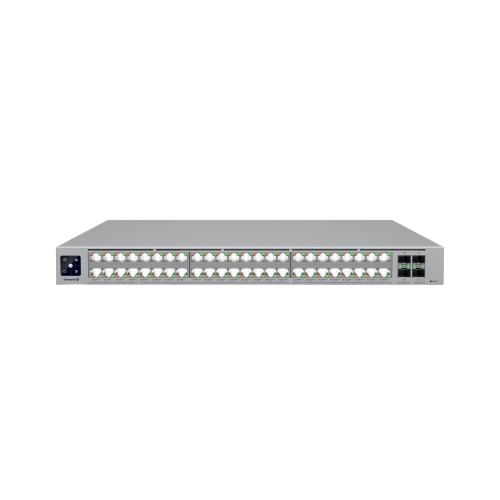

Ubiquiti ECS-48-POE 48-Port PoE+++ Layer 3 25G SFP28 10G RJ45 Enterprise Campus Switch

Ubiquiti ECS-48-POE Enterprise Campus 48 PoE

Enterprise-grade 48-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design

Note: 2,150W total PoE availability requires Shared Mode (coming soon). Recommend being paired with Enterprise Campus Aggregation. Requires a 4-post rack,or a center-mount bracket or cantilever shelf on 2-post racks for optimal support.

Key Features

• 1.3' touchscreen with AR switch management

• (16) Multi-speed 2.5 GbE PoE+++ ports (2.5G/1G/100M/10M)
• (32) Multi-speed 10 GbE PoE+++ ports (10G/5G/2.5G/1G/100M/10M)
• 1.150W total PoE supply
• (4)25G SFP28 ports
• Reset button
• (4) Hot-swappable fan modules
• Layer 3 switching features
• (2) Hot-swappable 1.200W power modules

Technical Specification

• Overview:
  • Dimensions: 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5')
  • Port Layout:
    • 2.5 GbE RJ45:
      • 16 (All PoE+++) (2.5G/1G/100M/10M)
    • 10 GbE RJ45:
      • 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
    • 25G SFP28:
      • 4 (25G/10G/1G)
    • 100G QSFP28:
      • 2 (100G)
  • Max. PoE Output: Up to PoE+++
  • Total PoE Availability:
    • 200-240V AC Shared Mode: 2,150W
    • 100-120V AC Shared Mode: 1,750W
    • 200-240V AC Redundant Mode: 950W
    • 100-120V AC Redundant Mode: 750W
  • Redundancy:
    • (2) Hot-Swappable PSUs
    • (4) Hot-Swappable Fans
  • Layer 3: ✓
  • Form Factor: Rack mount (1U, Full-Depth)
  • Etherlighting™: ✓
• Performance:
  • Switching Capacity: 920 Gbps
  • Total Non-Blocking Throughput: 460 Gbps
  • Forwarding Rate: 684 Mpps
  • Supported VLANs: 1,000
  • MAC Address Table Size: 128,000
  • L3 Table Size:
    • ARP Entries: 128,000
    • IPv4 Routes: 256,000
  • Packet Buffer Size: 8 MB
  • Access Lists:
    • IPv4: 256
    • MAC: 256
• Layer 3 Features:
  • DHCP Server (Local Networks): ✓
  • DHCP Relay: ✓
  • Inter-VLAN Routing (Local Networks): ✓
  • Static Routing (Local Networks): ✓
• Layer 2 Features:
  • LACP Port Aggregation: ✓
  • STP & RSTP: ✓
  • QoS (DSCP): ✓
  • Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): ✓
  • Advanced IGMP Configuration (Querier, Fast Leave, Router Port): ✓
  • IGMP Snooping: ✓
  • 802.1X Control: ✓
  • MAC-Based ACLs & Device Isolation: ✓
  • DHCP Snooping & Guarding: ✓
  • Egress Rate Limit: ✓
  • Flow Control: ✓
  • Storm Control: ✓
  • Multicast & Broadcast Rate Limiting: ✓
  • MAC Address Blocking: ✓
  • IP-Based ACLs & Network Isolation: ✓
  • MAC-Based Port Restriction: ✓
  • Port Isolation: ✓
  • Port Mirroring: ✓
  • Jumbo Frames: ✓
  • LLDP-MED: ✓
  • Voice VLAN: ✓
  • Loop Protection: ✓
• Hardware:
  • PoE Ports:
    • PoE+++: 48
  • Max. PoE Wattage per Port by PSE:
    • PoE: 15.4W
    • PoE+: 30W
    • PoE++: 60W
    • PoE+++: 90W
  • Max. Power Consumption:
    • 250W (Excluding PoE Output)
    • 2400W (Including PoE Output)
  • Power Method: (2) Universal input, 100—240V AC, 50/60 Hz
  • Power Input Method: (2) AC input, Hot-swappable power modules
  • Power Supply: (2) Hot-swappable AC/DC 1,200W power modules
  • Supported Voltage Range: 100—240V AC
  • Management:
    • Ethernet
    • AR
  • Weight:
    • Without mounting brackets: 9.46 kg (20.9 lb)
    • With mounting brackets: 9.56 kg (21.1 lb)
  • Enclosure Material: SGCC steel
  • Mount Material: SGCC steel
  • Supported Rack Depth:
    • 482.6 mm (19') four-post racks
    • Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
  • LCM Display: 1.3' touchscreen
  • Fan Method: (4) hot-swappable fan modules
  • ESD Protection: Air: ± 30kV, contact: ± 19kV
  • Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
  • Ambient Operating Humidity: 10 to 90% noncondensing
  • Etherlighting™:
    • Ethernet: ✓
    • SFP28: ✓
  • LEDs:
    • Ethernet: ✓
    • System: ✓
  • NDAA Compliant: ✓
  • Certifications: CE, FCC, IC
• Software:
  • Application Requirements:
    • UniFi Network
    • Version 9.0.114 and later
