PRODUCT SPECIFICATIONS

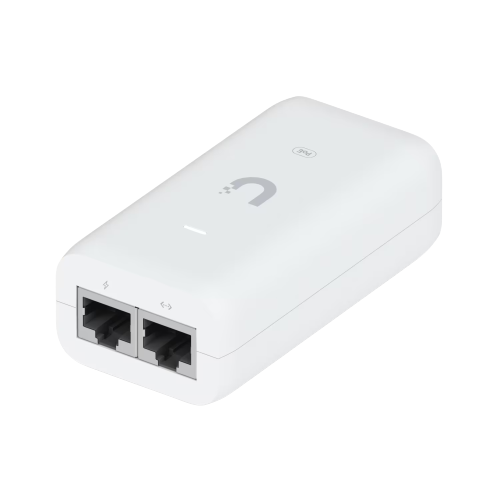

SKU: POE-48-24W - Provides Earth Grounding and Surge Protection Helps Protect Against ESD Events
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.
The PoE Adapters are compatible with most Ubiquiti PoE devices*, including:
- airFiber®
- airMAX®
- EdgeMAX®
- mFi®
- UniFi® AP
- UniFi Video / airVision®
- * Check product specifications to verify PoE compatibility.
Features
- Surge protection
- Clamping protection
- Maximum surge discharge
- Peak pulse current
- AC cable with earth ground
Dimension (L×W×H)
- 88 x 57 x 33 mm (3.47 x 2.24 x 1.30")
Weight
- 135.5 g (4.78 oz)
Technical Description
- POE-48-24W
- Output Voltage: 48VDC @ 0.5A
- LAN Activity Indicator: No
- Gigabit LAN Port: No
- Remote Reset Capability: No
- Reset Button: No
- Input Voltage: 90-260VAC @ 47-63 Hz
- Input Current:
- 0.6A @ 120VAC
- 0.4A @ 240VAC
- Inrush Current:
- <60A Peak @ 120VAC
- <120A Peak @ 230VAC
- Efficiency: 80+%
- Output Ripple: 1% Max.
- Switching Frequency: 65 kHz
- Line Regulation: ≤ 1%
- Load Regulation: ≤ 3%
- 2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-)
- 4-Pair Powering: –
- Operating Temperature: 0 to 40° C (32 to 104° F)
- Storage Temperature: -30 to 70°C (-22 to 158° F)
- Operating Humidity: 35 to 95% Noncondensing
- AC Connector: IEC-320 C6
- Data IN / PoE: RJ45 Shielded Socket
- Surge Protection: Difference and Common Mode
- Clamping Protection: 11V Data, 60V Power
- Max. Surge Discharge: 1500A (8/20 μs) Power
- Peak Pulse Current: 36A (10/1000 μs) Data
- Shunt Capacitance: <5 pF data
- Response Time: <1 ns
- Compliance: IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B
