PRODUCT SPECIFICATIONS

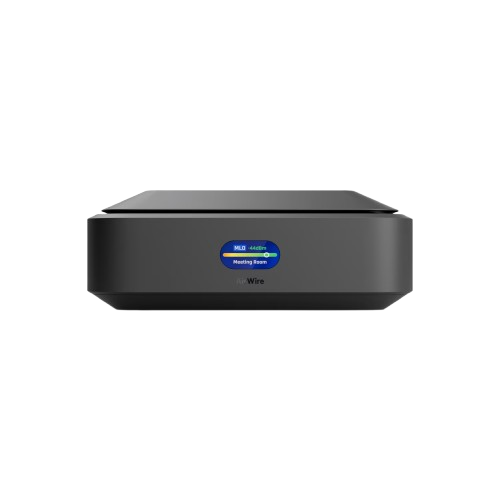

Ubiquiti U-AirWire-US
High-performance WiFi 7 client adapter with STR MLO, enabling simultaneous full-duplex links for ultra-low latency, extended range, and true multi-gigabit real-world speeds.
Key Features
- Adjustable long range antenna
- 6 GHz-ready WiFi 7 bridge
- UniFi Auto-link support with real-time spectral analysis
- 0.96' status display
- Main port (USB-C data and power)
- AUX port (Optional USB-C power)
- Reset button
- Note: Single cable operation requires a 15W USB-PD host device (or 20W for maximum performance).
- Note: A 15W or 20W (recommended) USB-PD power source is required for other host devices.
- Overview:
- Dimensions: 117 x 117 x 42.5 mm (4.6 x 4.6 x 1.7')
- WiFi Standard: WiFi 7
- Spatial Streams: 4
- Uplink: WiFi
- Performance:
- MIMO:
- 6 GHz: 2 x 2 (DL/UL MU-MIMO)
- 5 GHz: 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate:
- 6 GHz: 5.8 Gbps (BW320)
- 5 GHz: 4.3 Gbps (BW240)
- Antenna Gain:
- 6 GHz: 11 dBi
- 5 GHz: 11 dBi
- Max. TX Power:
- 6 GHz: 20 dBm
- 5 GHz: 25 dBm
- Supported Data Rates:
- 802.11be (WiFi 7): 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
- 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- MIMO:
- Features:
- Wireless Meshing: ✓
- Real-Time Spectral Analysis: ✓
- Hardware:
- Max. Power Consumption: 18W
- Power Supply:
- USB PD 5/9/12V, 15W (Normal mode)
- USB PD 5/9/12V, 20W (Performance mode)
- Networking Interface: (1) 5 GbE port (USB3.2 Gen2)
- Weight: 537 g (1.2 lb)
- Management: USB-C
- Enclosure Material: Polycarbonate
- Display: 0.96' status display
- Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
- NDAA Compliant: ✓
- Certifications: CE, FCC, IC
- Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
More Information
MFRPartNum:
U-AirWire-US
