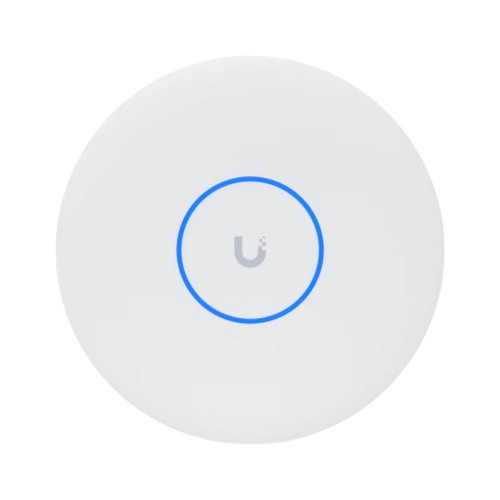

Ubiquiti U7-Pro-XG-US WiFi 7 AP Ceiling Mount 6-Stream Tri-Radio 10G PoE+ 300+ Clients

Ubiquiti U7-Pro-XG-US

Ceiling-mounted 6-stream WiFi 7 AP with 10/5/2.5/1 GbE support.

Key Features

• 6-stream WiFi 7 access point
• Tri-radio 2.4/5/2.5/1 GbE support
• Status LED
• 300+ connected devices
• 1.500 ft coverage

Technical Specification

• Performance:
  • MIMO:
    • 6 GHz: 2 x 2 (DL/UL MU-MIMO)
    • 5 GHz: 2 x 2 (DL/UL MU-MIMO)
    • 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
  • Max. Data Rate:
    • 6 GHz: 5.8 Gbps (BW320)
    • 5 GHz: 4.3 Gbps (BW240)
    • 2.4 GHz: 688 Mbps (BW40)
  • Max. TX Power:
    • 6 GHz: 24 dBm
    • 5 GHz: 26 dBm
    • 2.4 GHz: 23 dBm
  • Max. BSSIDs: 8 per Radio
    • Supported Data Rates:
      • 802.11be (WiFi 7):
        • 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
        • 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
      • 802.11ax (WiFi 6):
        • 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
      • 802.11ac (WiFi 5):
        • 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
      • 802.11n:
        • 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
• Hardware:
  • Max. Power Consumption: 22W
  • Supported Voltage Range: 42.5—57V DC
  • Networking Interface: (1) 10 GbE RJ45 port
  • Weight: 750 g (1.7 lb)
  • Management: Ethernet
  • Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
  • Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
  • LEDs:
    • System: White/Blue
  • Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
  • NDAA Compliant: ✓
  • Certifications: CE, FCC, IC
  • Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing
