PRODUCT SPECIFICATIONS
Ubiquiti UACC-Lock-Magnetic-540kg - UniFi Magnetic Lock

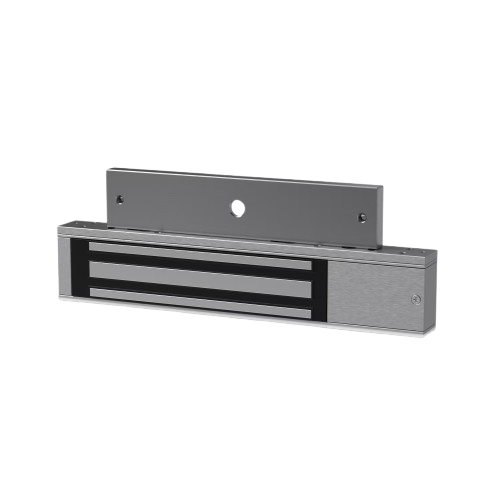

The Ubiquiti UACC-Lock-Magnetic-540kg is a fail-safe magnetic lock for a single wooden or metal door. It connects to a UniFi Access Hub and supports inswing and outswing installations. This 540 kg version provides a holding force of 540 kg (1,200 lb).
The lock includes embedded door position sensing and an LED indicator that shows green when unlocked and red when locked. It operates at 12V DC ±10% with a current draw of 500mA ±10%.
Key Features
- 540 kg (1,200 lb) holding force
- Fail-safe operation for a single door
- Supports wooden and metal doors
- Compatible with inswing and outswing installations
- Connects to a UniFi Access Hub
- Embedded door position sensor
- Green unlocked and red locked LED indicators
- Aluminum device and brackets with a steel armature
Applications
- Single wooden or metal doors in UniFi Access deployments
- Outward-opening doors less than 42 mm (1.7 inches) thick using the L bracket
- Inward-opening doors using the Z bracket together with the L bracket
Technical Specifications
- Ports / Interfaces
- Wiring: (1) Lock 12V/NC (red), (1) Lock 12V/COM (black), (1) DPS/+ (white), (1) DPS/- (yellow)
- Hardware
- Lock Type: Fail safe
- Support Door Type: Single door (Wooden/metal)
- DPS: Embedded
- LED Indicator: Green: unlocked; Red: locked
- Enclosure Material: Device/brackets: aluminum; Armature: steel
- Power
- Current Power: 500mA ±10%
- Support Voltage Range: 12V DC ±10%
- Physical
- Holding Force: 540 kg (1,200 lb)
- Lock Body Dimensions: 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6 inches)
- Install Plate Dimensions: 266 x 40 x 6 mm (10.5 x 1.6 x 0.2 inches)
- Armature Dimensions: 185 x 61 x 16 mm (7.3 x 2.4 x 0.6 inches)
- Lock Body Weight: 2.9 kg (6.4 lb)
- Install Plate Weight: 145 g (0.3 lb)
- Armature Weight: 1.4 kg (3.1 lb)
- L Bracket: For outward-opening door thickness < 42 mm (< 1.7 inches)
- Z Bracket: For inward-opening doors, used with the L bracket
- Environmental
- Ambient Storage Temperature: -20 to 70° C (-4 to 158° F)
- Ambient Operating Temperature: -10 to 60° C (14 to 140° F)
- Ambient Operating Humidity: 5 to 90% noncondensing
- Certifications
- NDAA Compliant: Yes
- Certifications: FCC, IC, CE
