PRODUCT SPECIFICATIONS

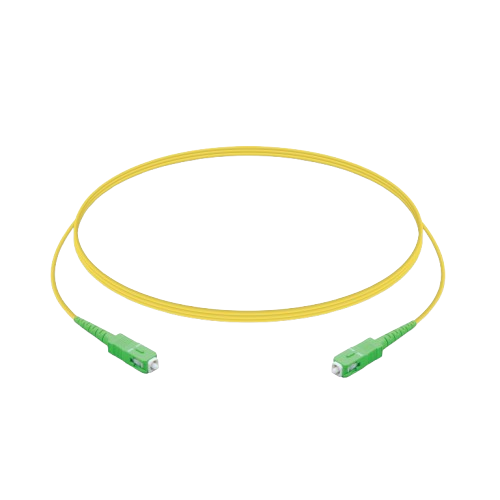

Ubiquiti UF-SM-PATCH-APC-APC - SC/APC Fiber Patch Cable
The Ubiquiti UF-SM-PATCH-APC-APC is a 1.5 m fiber patch cable with an SC/APC connector on each end for building out a GPON network. Its SM9/125 SX cable uses a 2.0 mm yellow PVC jacket.
Key Features
- SC/APC to SC/APC connection
- 1.5 m (59.1') cable length
- Ultra-thin 2.0 mm jacket
- SM9/125 SX cable
- Yellow PVC jacket
- Insertion loss of ≤ 0.3 dB
- Return loss of 60 dB
Applications
- Building out GPON networks with SC/APC fiber connections
Technical Specifications
- Ports / Interfaces
- Connector type: (2) SC/APC 2.0 mm SM SX connector, green
- Networking
- Insertion loss: ≤ 0.3 dB
- Return loss: 60 dB
- Physical
- Cable length: 1.5 m (59.1')
- Cable type: SM9/125 SX 2.0 mm, PVC Jacket, Yellow
- Jacket material: Yellow PVC
More Information
MFRPartNum:
UACC-OFC-SM-PATCH-APC-APC
