PRODUCT SPECIFICATIONS
Model: UAP-AC-EDU-4-US

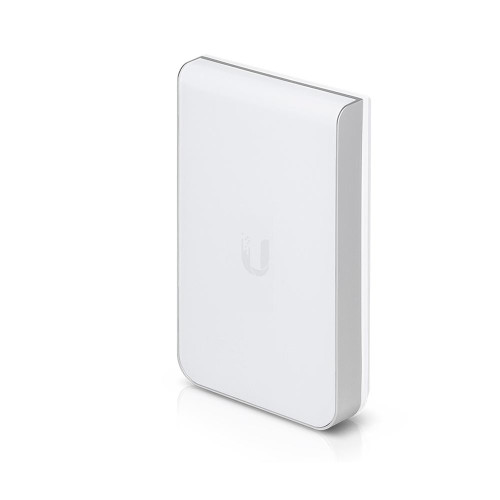

UniFi Access Point AC edu 802.11ac Dual-Radio AP with Public Address System
The UAP-AC-EDU UniFi Access Point Enterprise Wi-Fi System from Ubiquiti is a scalable enterprise access point solution designed to be easily deployed and managed. It supports the 802.11ac Wi-Fi standard with speeds of up to 1300 Mb/s in the 5 GHz radio band, and up to 450 Mb/s in the 2.4 GHz radio band. The Wi-Fi system offers simultaneous dual-band operation with 3 x 3 MIMO technology for each band. It has a range of up to 400' and one Gigabit Ethernet port. This UniFi Access Point (AP) has a sleek design and can be easily mounted to a ceiling tile or wall using the included mounting hardware. An integrated loudspeaker provides the ability to conduct public announcements via Wi-Fi throughout large campus environments.
The Wi-Fi system includes UniFi software that can be installed on a PC, Mac, or Linux machine within the network, and is easily accessible through a standard Web browser. Using the UniFi software, an Enterprise Wi-Fi network can be quickly configured and administered, without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated in the system.
UniFied Wi-Fi and Public Address System Integration
- Make announcements over Wi-Fi — no separate hardware needed.
- The UniFi EDU mobile app is now available in the App Store for iOS and Google Play Store for Android.
Advanced Acoustic Performance
- The UniFi AC EDU AP provides high-quality sound with accurate voice reproduction.
Dual-Radio 3x3 MIMO
- The UniFi AC EDU AP supports simultaneous dual-band, 3x3 MIMO technology in the 2.4 and 5 GHz radio bands for up to 1750 Mbps.
Mobile Announcement App
- Broadcast announcements with clarity from your iOS or Android-based device using our mobile app.
Compatibilities
- International version
Technical Specifications
- Networking Interface: (1) 10/100/1000 Ethernet Ports
- Antennas: (3) Dual-Band Antennas, 3 dBi Each
- Max TX Power: 2.4GHz: 22 dBm - 5GHz: 22 dBm
- Buttons: Reset
- Wifi Standards: 802.11 a/b/g/n/ac
- Power Method: Passive Power over Ethernet (48V), 803.2at Supported (Supported Voltage Range: 44 to 57VDC) ** PoE Not Included**
- Maximum Power Consumption: 20W
- BSSID: Up to Four Per Radio
- Power Save: Supported
- Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
- Certifications: CE, FCC, IC
- Mounting: Wall and Ceiling
- Operating Temperature: -10 to 70°C (14 to 158°F)
- Operating Humidity: 5 to 95% non-condensing
Advanced Traffic Management
- VLAN: 802.1Q
- Advanced QoS: Per-User Rate Limiting
- Guest Traffic Isolation: Supported
- WMM: Voice, Video, Best Effort and Background
- Concurrent Clients: 200+
Loudspeaker Acoustics
- Sensitivity: 94 dB (1W/1 m)
- Maximum SPL: 103 dB @ 1 m
- Frequency Response: 100 - 20,000 Hz
- Type: Two-Way Speaker with Second-Order HP Filter
Microphone Acoustics
- Sensitivity: -40 dB
- Polar Pattern: Omni
- Frequency Response: 50 - 20,000 Hz
