PRODUCT SPECIFICATIONS

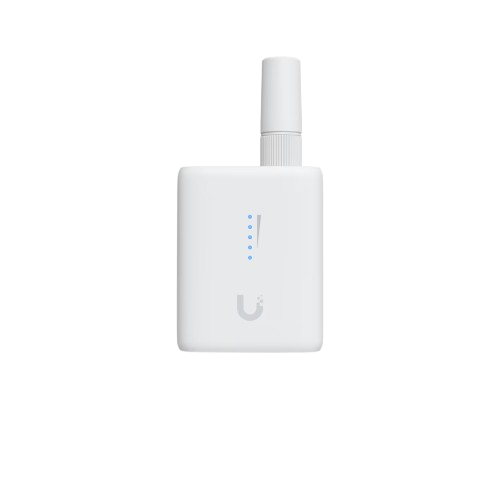

Ubiquiti UDB-IoT Device Bridge IoT
Ultra-compact wireless bridge for IoT devices with integrated UniFi WiFi Auto-Link, versatile mounting options, and powered by USB Type-C or 4-pin DC socket.
Note: Full VLAN functionality is available on Access Points running Early Access (EA) firmware.
Key Features
- (1) Internal antenna
- (1) RP-SMA connector for external omni-antenna
- Mesh signal LEDs
- Status LED
- (1) 10/100M RJ45 port
- 89 mm
- 44.5 mm
- 25.5 mm
- 63 mm
- Overview:
- Dimensions:
- Device: 63 x 44.5 x 25.5 mm (2.5 x 1.8 x 1')
- With external antenna: 89 x 44.5 x 25.5 mm (3.5 x 1.8 x 1')
- WiFi Standard: WiFi 4
- Spatial Streams: 2
- Mounting Locations: Wall, DIN rail
- Mounting: Included mount
- Power Method:
- USB Type-C (5V DC, 1A)
- 4-pin DC (9–30V DC)
- Dimensions:
- Performance:
- MIMO:
- 2.4 GHz: 2 x 2
- Max. Data Rate:
- 2.4 GHz: 300 Mbps (BW40)
- Antenna Gain:
- 2.4 GHz:
- Internal: 4dBi
- External omni: 3dBi
- 2.4 GHz:
- Max. TX Power:
- 2.4 GHz: 20 dBm
- Max. Conducted TX Power: 20 dBm (Combined)
- Supported Data Rates:
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- Wireless Security: WPA2 AES (Always On)
- MIMO:
- Hardware:
- Max. Power Consumption: 2.3W
- Supported Voltage Range:
- USB-C: 5V DC
- Socket: 9–30V DC
- Networking Interface: (1) 10/100M RJ45 port
- Antennas:
- (1) Internal antenna
- (1) RP-SMA connector for external omni-antenna
- Management: WiFi
- Channel Bandwidth: 20/40 MHz
- Weight:
- Device: 45 g (1.6 oz)
- With external antenna: 53 g (1.9 oz)
- Enclosure Material: Polycarbonate
- Mount Material: Polycarbonate
- Button: (1) Factory reset
- LEDs:
- System:
- (4) Blue: signal
- (1) White/blue: indicator
- System:
- NDAA Compliant: ✓
- Certifications: CE, FCC, IC
- Ambient Operating Temperature: -10 to 50° C (14 to 122° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
