Ubiquiti

Part:
UDIM-AC-3

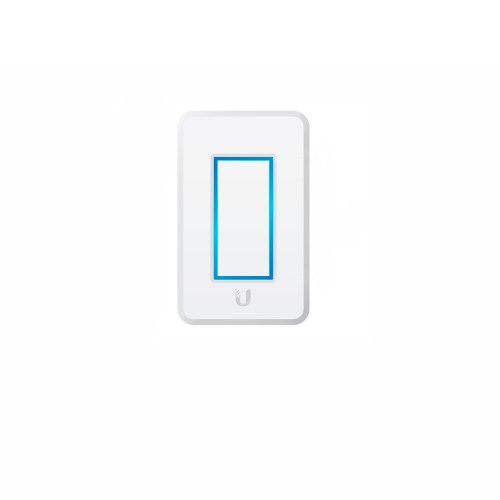

Ubiquiti Dimmer Switch AC (3-Pack)

$123.99
$169.00
Condition:
New

PRODUCT SPECIFICATIONS

Dimmer Switch AC (3-Pack)

UDIM-AC is a smart in-wall dimmer switch for use with UniFi LED. UDIM-AC is powered by 100-277V universal AC and features Wi-Fi connectivity. Use the intuitive UniFi LED application and UniFi LED mobile app to configure and control UDIM-AC.

Features:

  • Compatible with UniFi LED
  • Single-tap On/Off
  • Touch slide dimming from 10-100%
  • Powered by 100-277V Universal AC
  • Network connectivity via Wi-Fi (802.11 b/g/n)
  • Designed for US-Standard One Gang switch box
  • Configured and managed by UniFi LED application and UniFi LED mobile app

Technical Description

  • Dimensions
    • 71 x 115 x 37.5 mm (2.8 x 4.53 x 1.48")
  • Weight
    • 125 g (4.41 oz)
  • Management Interface
    • UniFi LED Controller
    • UniFi LED App
  • Networking Interface
    • 802.11 b/g/n (2.4 GHz Only)
  • Buttons
    • Reset
  • Power Method
    • 100-277VAC
  • Supported Voltage Range
    • 48V
  • Max. Power Consumption
    • 5W
  • LED Panels per Dimmer Switch
    • 128 (Recommended)
  • Operating Temperature
    • 0 to 40° C (32 to 104° F)
  • Certifications
    • FCC, IC

More Information

MFRPartNum:
UDIM-AC-3
