Name: Ubiquiti UNAS Pro Rack-Mount NAS 7-Bay Storage 10G SFP+ Port RAID Support Touchscreen Management
Brand: Ubiquiti
SKU: UNAS-Pro
Price: 499 USD
Availability: OutOfStock

PRODUCT SPECIFICATIONS More Information

PRODUCT SPECIFICATIONS

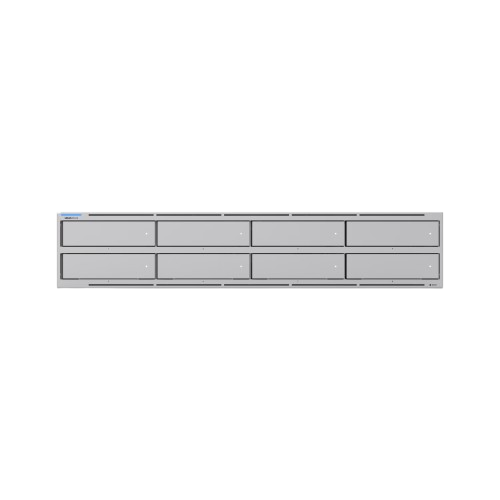

Ubiquiti UNAS Pro – High-Performance 2U Rack-Mount NAS

The Ubiquiti UNAS Pro is a powerful 2U rack-mounted NAS designed for large-scale file storage and sharing. With support for up to seven 2.5' or 3.5' drives, RAID storage technology for data protection, and 10 Gbps performance, it is ideal for enterprises and organizations requiring robust and scalable storage solutions. Featuring UniFi integration and a 1.3” touchscreen, the UNAS Pro simplifies storage management and ensures seamless performance.

Key Features:

High Capacity Storage: Supports (7) 2.5” or 3.5” HDD/SSD drives for flexible storage configurations.
Advanced Networking: Equipped with (1) 10G SFP+ uplink port and (1) GbE RJ45 port for high-speed connectivity.
Data Protection: RAID storage technology ensures redundancy and data security.
Power Redundancy: Compatible with UniFi Power Backup for reliable uptime.
User-Friendly Management: 1.3” touchscreen for real-time monitoring and control.

Applications

Centralized file storage for enterprises and SMBs.
Scalable backup solutions for mission-critical data.
High-performance file sharing in multi-user environments.
Secure and redundant data management with RAID technology.

Technical Description:

Mechanical:
- Dimensions: 442 x 325 x 87 mm (17.4 x 12.8 x 3.4 in)
- Weight:
  - Without Mounting Brackets: 9.2 kg (20.3 lb)
  - With Mounting Brackets: 9.5 kg (20.8 lb)
- Material: SGCC Steel
Hardware:
- Processor: Quad-Core ARM® Cortex®-A57 at 1.7 GHz
- Memory: 8 GB
- Networking Interfaces:
  - (1) 10G SFP+ Port
  - (1) 1G RJ45 Port
Power:
- Input:
  - Universal AC (100–240V, 50/60Hz, 3A Max)
  - USP-RPS DC Input (11.5V DC, 13.91A)
- Power Supply: Internal AC/DC, 200W
- Max Power Consumption: 160W
- Drive Power Budget: 135W
Environmental:
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Humidity: 5–90% Non-condensing
Certifications:
- CE, FCC, IC
Indicators:
- Ethernet: Green for 1 Gbps, Amber for 10/100 Mbps
- SFP+: White for 10 Gbps, Green for 1 Gbps
- HDD: White for disk detected, Amber for disk error
- RPS: Blue for ready
Software Features:
- Integrated with UniFi Network for centralized management.
- Real-time monitoring via the 1.3” touchscreen interface.
