Ubiquiti

Part:
UVC-AI-Theta

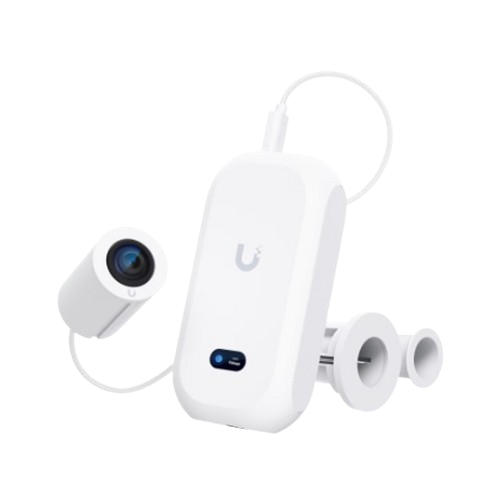

Ubiquiti UVC-AI-Theta 4K AI Security Camera System with 360° & Wide Angle Lenses PoE Powered Hub

$299.00
Condition:
New
Ubiquiti UVC-AI-Theta 4K AI Security Camera System with 360° & Wide Angle Lenses PoE Powered Hub
PRODUCT SPECIFICATIONS More Information

PRODUCT SPECIFICATIONS

Ubiquiti UVC-AI-Theta

A complete AI Theta system that discreetly secures any space while maintaining a warm and inviting atmosphere.

Key Features:

  • Kit includes (1) AI Theta Hub, (1) Wide-Angle Lens, (1) 360 Lens, and (2) Standard Flush Mounts
  • 4K (9MP) resolution and ultra-wide 360° view with 360 Lens
  • 4K (8MP) video resolution with Wide-Angle Lens
  • Advanced AI: Detect people, read license plates, and more*
  • Minimal footprint with lens separated from the camera body
  • PoE powered hub that connects to lens with included cable
  • Supports optional AI Theta Audio module for two-way audio

Technical Specification

  • Mechanical:
    • Dimensions:
      • UVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”)
      • UVC-AI-Theta-Lens/360: Ø22.8. x 43.5 mm (Ø0.9 x 1.7”)
    • Weigh:
      • UVC-AI-Theta-Hub: 330 g (11.6 oz)
      • UVC-AI-Theta-Hub Mount: 35 g (1.2 oz)
      • UVC-AI-Theta-Lens/360: 15 g (0.5 oz)
      • UVC-AI-Theta-Lens/360 Flush Mount: 12 g (0.4 oz)
    • Enclosure material:
      • UVC-AI-Theta-Hub: aluminum alloy
      • UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate
      • UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate
    • Mount material:
      • UVC-AI-Theta-Hub: aluminum alloy
      • UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate
      • UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate
    • Cable jacket enclosure dimensions: 28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3')
    • Cable jacket enclosure material: PVC
    • Cable length: 1 m (3.3 ft)
    • Cable diameter: 3.7 mm (0.15')
    • Cable jacket material: Woven fabric
    • Cable weight: 18 g (0.63 oz)
    • Cable connector type: Theta proprietary
  • Optics:
    • Lens: Fixed focal length
    • Sensor:
      • UVC-AI-Theta-Lens: 8MP CMOS
      • UVC-AI-Theta-Lens-360: 12MP CMOS
    • View angle:
      • UVC-AI-Theta-Lens:
        • H: 97.5°
        • V: 79.4°
        • D: 118.2°
      • UVC-AI-Theta-Lens-360:
        • H: 180°
        • V: 180°
        • D: 180°
  • Video:
    • Resolution:
      • UVC-AI-Theta-Lens: 8MP 3264 x 2448 (4:3)
      • UVC-AI-Theta-Lens-360: 6MP 2560 x 2560 (1:1)
    • Max. frame rate:
      • UVC-AI-Theta-Lens: 24 FPS
      • UVC-AI-Theta-Lens-360: 20 FPS
    • Image settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
  • System:
    • Processor: Quad-core Arm® Cortex®-A53 based chip
    • Networking interface: GbE RJ45 port
    • Max. power consumption: 12.5W
    • Power method: PoE
    • Power supply: 5V DC, 0.5A
    • Supported voltage range: 37—57V DC
    • Output power: 5V DC, 1A per port
    • LED: R/G/B/W
    • Button: Factory reset
    • Mounting: Wall, ceiling mount
    • Ambient operating temperature: -20 to 40° C (-4 to 104o F)
    • Ambient operating humidity: 10 to 90% noncondensing
    • Certifications: FCC, IC, CE
  • Audio:
    • Microphone: Supports optional AI Theta Audio module for two-way audio (Sold separately)
    • Speaker: Supports optional AI Theta Audio module for two-way audio (Sold separately)
  • Software:
    • Web application: UniFi Protect: Version 2.7.18 and later
    • Mobile app: UniFi Protect iOS™ and Android™: Version 1.11.0 and later

More Information

MFRPartNum:
UVC-AI-Theta
