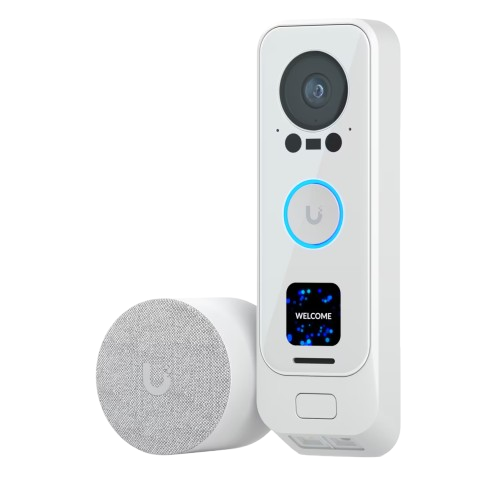

Ubiquiti UVC-G4 Doorbell Pro PoE Kit WH HD Camera IR Night Vision 2MP IPX4 Weatherproof

Technical Specifications

• Overview:
  • Dimensions
    • Device: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4')
    • Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7')
    • Wedge: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1')
    • On-wall mount: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1')
  • IR Night Vision: 6 m (20 ft)
  • Smart Detections (People, Vehicles, Animals)
  • Resolution: FHD
  • Field of View:
    • Main camera: H: 138°, V: 114°, D: 155° (LDC On)
    • Main camera: H: 160°, V: 117°, D: 160° (LDC Off)
    • Package camera: H: 97.5°, V: 79.4°, D: 118.2°
  • Audio: Two-way audio
  • Weatherproofing: IPX4
  • Mounting:
    • Wall, wedge (Included)
    • Gang box, junction box (Optional)
• Performance:
  • Networking Interface: GbE RJ45 port
  • Video:
    • Max. Frame Rate: 30 FPS
    • Resolution:
      • Main camera: 2MP 1600 x 1200 (4:3)
      • Package camera: 2MP 1600 x 1200 (4:3)
  • Optics:
    • Sensor:
      • Main camera: 5MP CMOS
      • Package camera: 8MP CMOS
    • Lens:
      • Fixed focal length
    • Night Mode:
      • Built-in IR LED illumination and IR cut filter
• Hardware:
  • Max. Power Consumption: 7W
  • Supported Voltage Range: 37—57V DC
  • Power Method: PoE
  • Processor: Quad-core Arm® Cortex®-A53 based chip
  • Weight:
    • Device: 264 g (9.3 oz)
    • Wall mount: 56 g (2 oz)
    • Wedge: 33 g (1.2 oz)
    • On-wall mount: 53 g (1.9 oz)
  • Enclosure Material: Polycarbonate, aluminum alloy
  • Mount Material:
    • Flat wall mount: aluminum alloy
    • 20° wedge mount: polycarbonate
  • Button:
    • (1) Ring button
    • (1) Factory-reset
  • Ambient Operating Temperature: -30 to 40º C (-22 to 104º F)
  • Ambient Operating Humidity: 0 to 90% noncondensing
  • Certifications: CE, FCC, IC
• Chime:
  • Dimensions:
    • Device: Ø62 x 54 mm (Ø2.5 x 2.1')
    • In-wall mount: Ø89 x 63.1 mm (Ø3.5 x 2.5')
    • On-wall Mount: Ø62 x 20.2 mm (Ø2.5 x 0.8')
  • Weight:
    • Device: 158 g (5.6 oz)
    • In-wall mount: 91 g (3.2 oz)
    • On-wall mount: 28 g (1 oz)
  • Enclosure Material: Polycarbonate, aluminum alloy
  • Mounting Material: Polycarbonate, zinc alloy
  • Networking Interface: 10/100 MbE port
  • Power Method: PoE
  • Supported Voltage Range: 44—57V DC
  • Max. Power Consumption: 3W
  • Speaker
  • Buzzer
  • Buttons: (1) Factory-reset
  • Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
  • Ambient Operating Humidity: 10 to 90% noncondensing
  • Certifications: CE, FCC, IC
  • LEDs: R/G/B/W
• Software:
  • Mobile app: UniFi Protect iOS™ and Android™
