PRODUCT SPECIFICATIONS

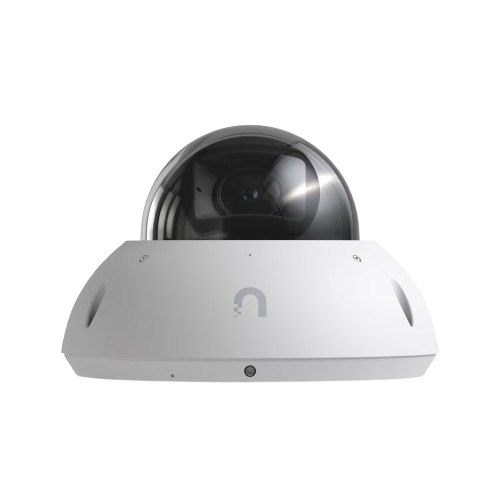

Ubiquiti UVC-G6-Pro-Dome-B G6 Pro Dome
All-weather vandal-proof 4K PoE+ camera with a Multi-TOPS AI engine, 2.36x optical zoom, and a large 1/1.2' CMOS sensor for exceptional low-light clarity and long-range IR night vision.
Key Features
- 4K 1/1.2' 8MP image sensor
- Multi-TOPS AI engine
- 2.36x optical zoom
- IR LED 40 m (131 ft) IR night vision
- SD card slot, Light sensor
- PoE RJ45 port
- Reset button
- Ø163.8 mm
- 108.8 mm
- Overview:
- Dimensions: ⌀163.8 × 108.8 mm (⌀6.45 × 4.28')
- IR Night Vision: 40 m (131 ft)
- Zoom Mode: 2.36x Optical
- Face Recognition: ✓
- License Plate Recognition: ✓
- Smart Detections (People, Vehicles, Animals): ✓
- Resolution: 4K
- Field of View:
- Wide: H: 113.8°, V: 61.9°, D: 134°
- Tele: H: 45.5°, V: 25.8°, D: 52°
- Audio: Microphone
- Weatherproofing: IP66
- Tamper Resistance: IK10
- Mounting:
- Ceiling, Wall mount (Included)
- Gang Box Mounting Plate, Camera Dual Mount, Flush Mount, Weather Shield (Optional)
- Performance:
- Networking Interface:
- GbE RJ45 port
- Video:
- Image Settings:
- Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
- Max. Frame Rate:
- 30 FPS
- Resolution:
- 8MP 3840 x 2160 (16:9)
- Image Settings:
- Optics:
- Sensor: 1/1.2' 8MP
- Lens: F 5.9-13.8 mm; ƒ/1.5-ƒ/2.9
- Night Mode: Built-in adaptive IR LED illumination and IR cut filter
- Networking Interface:
- Hardware:
- Max. Power Consumption: 15W
- Supported Voltage Range: 42.5–57V DC
- Power Method: PoE+
- Processor: Quad core Arm® Cortex®-A53 based chip
- Weight: 1.2 kg (2.6 lb)
- Enclosure Material: Aluminum alloy, polycarbonate
- Mount Material: Stainless steel
- Expansion Slot: MicroSD card
- Button: (1) Factory reset
- Ambient Operating Temperature: -20 to 50º C (-4 to 122º F)
- Ambient Operating Humidity: 0 to 90% noncondensing
- NDAA Compliant: ✓
- Certifications: CE, FCC, IC
More Information
MFRPartNum:
UVC-G6-Pro-Dome-B
