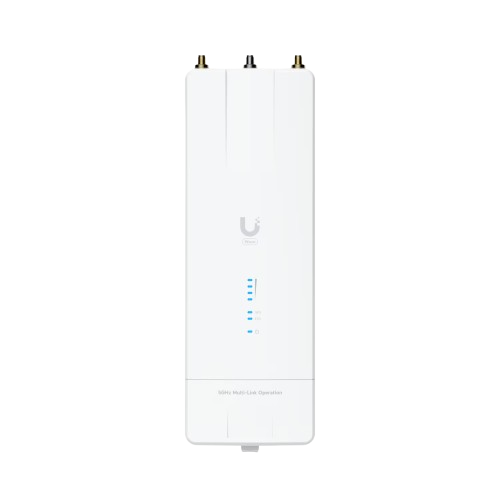

Ubiquiti Wave-MLO5 High-Performance WiFi 7 Point-to-Point Radio

Ubiquiti Wave-MLO5

High-performance dual 5 GHz WiFi 7-based radios with Multi-Link Operation (MLO) technology for enhanced throughput and reliable connectivity.

Key Features

• 5 GHz, 100+ km link range
• Status LEDs
• RP-SMA antenna connectors
• GPS antenna connectors
• Integrated Bluetooth
• Grounding stud
• Pole mount compatibility 25.4 to 50.8 mm (1' to 2') on pipe outer diameter
• 10G SFP+ port
• 10 GbE RJ45 port
• Reset button

Technical Specification

• Mechanical:
  • Dimensions: 249.3 x 82 x 47.6 mm (9.8 x 3.2 x 1.9')
  • Weight: 575 g (1.3 lb)
  • Enclosure material:cAluminum alloy, UV-resistant polycarbonate
  • Mount material:
    • Strap: stainless metal
    • Universal bracket: UV-resistant polycarbonate
  • Pole mount diameter: 25.4 to 50.8 mm (1 to 2') on pipe outer diameter
  • Weatherproofing: IPX6
• Hardware:
  • Processor: Quad-core IPQ5322 at 1.5 GHz
  • Memory: DDR4 1 GB
  • Networking interface:
    • (1) 10 GbE RJ45 port
    • (1) 10G SFP+ port
  • RF connectors:
    • (2) RP-SMA (Waterproof)
    • (1) GPS (Waterproof)
  • Max. power consumption: 20W
  • Power method:
    • Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
    • Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
  • Power supply: 54V DC, 0.56A, 10 GbE PoE adapter (Included)
  • Supported voltage range:
    • 44–54V DC
    • 22–27V DC
  • Max. TX power* 5 GHz: 24 dBm
    • *Depends on regulatory region.
  • MIMO5 GHz: (2) 2 x 2
  • GPS: Yes
  • Button: (1) Factory reset
  • LEDs: (1) Power, (1) Ethernet, (1) GPS, (4) signal
  • Ambient operating temperature: -40 to 60° C (-40 to 140° F)
  • Ambient operating humidity: 5 to 95% noncondensing
  • Certifications: FCC, IC, CE
  • NDAA Compliant: Yes
• Software:
  • Operating mode: PtP
  • Services: UISP, ping watchdog, NTP client
  • Tools: Alignment, speed test, ping, traceroute, discovery, site survey
  • Network: Bridge mode
  • Total throughput: 5+ Gbps
  • Max. range*: 100 km
    • *Throughput and range values may vary depending on the environmental conditions.
  • Encryption: WPA3-PSK (AES)
• RF:
  • Operating frequency*: 5180 – 5320, 5500 – 5700, 5745 – 5825 MHz
    • *Depends on regulatory region.
  • Channel bandwidth:
    • Radio 1: 20, 40, 80, 160 MHz
    • Radio 2: 20, 40, 80, 160, 240 MHz
  • Modulation: BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (⅔), 64QAM (¾), 64QAM (⅚), 256QAM (¾), 256QAM (⅚), 1024QAM (¾), 1024QAM (⅚), 4096QAM (¾), 4096QAM (⅚)
