PRODUCT SPECIFICATIONS

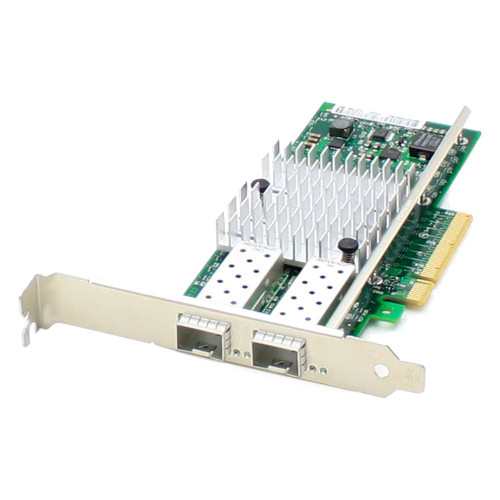

AddOn MHQH29C-XTR-AO Dual-Port 10GbE SFP+ Network Card
The AddOn MHQH29C-XTR-AO adds two open SFP+ network ports through a PCIe 2.0 x8 host interface. Built around the Intel 82599 chipset, it provides 10 Gigabit Ethernet connectivity for supported server and workstation installations.
Selectable SFP+ optics allow deployment over multimode or single-mode fiber. Choose transceivers and cabling according to the required distance, fiber infrastructure, and confirmed adapter compatibility.
Key Features
- Two open SFP+ ports for 10 Gigabit Ethernet connectivity.
- PCIe 2.0 x8 host interface.
- Intel 82599 chipset.
- VLAN filtering support.
- Preboot Execution Environment (PXE) boot support.
- Half-height and full-height brackets included.
Installation and Deployment
Verify host-slot suitability, chassis clearance, and driver availability for the intended operating system before installation. PXE deployment also requires suitable host firmware settings and network boot infrastructure.
Ideal Applications
- Supported server and workstation Ethernet upgrades.
- Fiber-connected enterprise network deployments.
- Systems requiring two separate network connections.
- Network boot deployments using PXE.
Compatible Products
Host installation requires a suitable PCI Express slot supporting the card’s PCIe 2.0 x8 interface, sufficient chassis clearance, and a compatible operating-system driver.
The manufacturer supports multimode and single-mode fiber applications through appropriate SFP+ transceivers.
Important: SFP+ form factor alone does not establish compatibility.
Technical Specifications
General
- Brand: AddOn Networks
- Model / MPN: MHQH29C-XTR-AO
- Product Type: PCIe Ethernet network interface card
Controller and Host Interface
- Chipset: Intel 82599
- Host Interface: PCI Express 2.0 x8
Network Interfaces
- Port Count: 2
- Port Type: Open SFP+
- Network Rate: 10 Gigabit Ethernet
- Protocol: Ethernet
- Fiber Media: Multimode or single-mode, depending on the selected compatible transceiver
- Optical Wavelength, Connector, and Reach: Determined by the selected transceiver and cabling
Features
- Network Boot: PXE supported
- VLAN Filtering: Supported
Physical and Environmental
- Mounting Brackets: Half-height and full-height included
Included Parts
- 1 × network interface card.
- Half-height and full-height brackets.
