PRODUCT SPECIFICATIONS

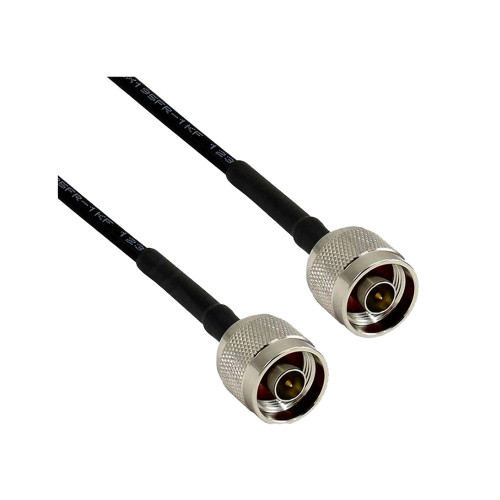

Altelix CA195FR-NMNM-002F 2 ft N-Male to N-Male Low-Loss Coaxial Cable
The Altelix CA195FR-NMNM-002F is a 2-foot 195-Series low-loss coaxial cable assembly terminated with N-Male connectors on both ends. It is designed for short RF connections between antennas, radios, surge protectors, and other wireless equipment equipped with N-Female interfaces.
The assembly uses Altelix AX195FR 50-ohm coaxial cable, which combines a compact 4.95 mm cable diameter with a flexible fire-retardant PVC jacket. Its low-loss construction makes it suitable for WiFi, wireless networking, RF pigtails, PCS systems, and short antenna feeder runs.
The short 2-foot length helps keep RF cable loss low while providing enough flexibility for equipment mounted close to antennas, lightning protectors, enclosures, or other RF components.
Key Features
- 2 ft / approximately 0.61 m cable length
- N-Male connector on both ends
- Altelix AX195FR 195-Series coaxial cable
- 50-ohm impedance
- Low-loss RF design
- Flexible fire-retardant PVC jacket
- Compact 4.95 mm / 0.19 in cable diameter
- 25 mm / 0.98 in minimum bend radius
- Suitable for indoor and outdoor RF applications
- RoHS compliant cable construction
Low-Loss 195-Series Construction
Altelix AX195FR is designed as a lower-loss alternative to standard RG58-type cable for short RF runs. Its construction uses a copper-clad aluminum center conductor, foam polyethylene dielectric, bonded aluminum foil shielding, tinned copper braid, and a fire-retardant PVC outer jacket.
N-Male to N-Male Connection
Both ends of the CA195FR-NMNM-002F use N-Male connectors, making the assembly suitable for connecting equipment with N-Female RF ports. Common applications include external antennas, wireless radios, RF surge protectors, and other 50-ohm RF components.
Fire-Retardant Jacket
The AX195FR cable uses a flexible fire-retardant PVC jacket, making it a good fit for installations where fire-retardant cabling is preferred, including equipment rooms, cabinets, indoor wireless installations, and short antenna feeder runs.
RF Performance
Altelix specifies the AX195FR cable across common RF frequencies through 5.8 GHz. Typical cable attenuation ranges from 10.7 dB per 100 ft at 900 MHz to 28.2 dB per 100 ft at 5.8 GHz. Because this assembly is only 2 feet long, it is well suited for short connections where minimizing RF cable length is important.
Ideal Applications
- WiFi and wireless networking equipment
- Point-to-point and point-to-multipoint radios
- Antenna jumper connections
- RF surge protector connections
- PCS and RF systems
- Indoor equipment cabinets
- Short antenna feeder runs
Compatibility Note: This cable has N-Male connectors on both ends. Verify that the equipment being connected uses N-Female RF interfaces and a 50-ohm impedance before installation.
