PRODUCT SPECIFICATIONS

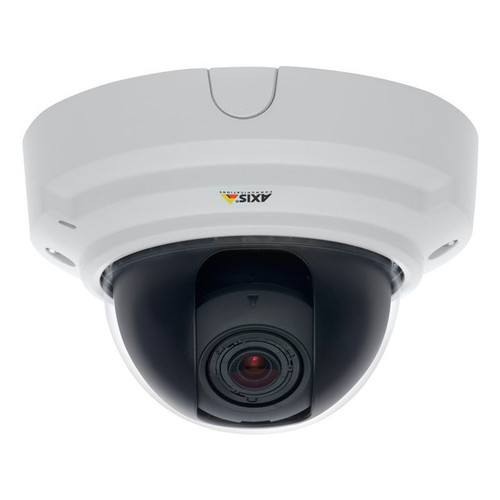

AXIS P3384-V 0511-001 Indoor Dome Network Camera
The AXIS P3384-V is a fixed dome IP camera designed for indoor surveillance. Its compact, impact-resistant housing suits locations such as entrances, corridors and reception areas.
WDR – Dynamic Capture helps manage scenes with strong differences between bright and dark areas. Lightfinder mode improves visibility in low light. A 3–9 mm varifocal P-Iris lens provides flexibility when framing the monitored area.
Key Features
- Video resolution up to 1280 x 960, approximately 1.3 megapixels.
- Up to 30 fps with a 60 Hz power-line frequency setting.
- WDR – Dynamic Capture and selectable Lightfinder mode.
- Remote lens zoom and focus for installation adjustments.
- Digital pan, tilt and zoom within the captured image.
- IK10 impact-resistant housing.
Image Quality and Lens Control
P-Iris control helps optimize image clarity and depth of field. Remote focus and zoom simplify framing during installation. Digital PTZ selects an area within the camera image; the camera does not mechanically pan or tilt.
Network and Power
A wired Fast Ethernet connection carries video and supplies power through standards-based PoE. Use a compatible PoE switch or injector with sufficient power available for the camera.
Audio, Recording and Integration
The camera supports two-way audio, a built-in microphone, external audio connections and event-based recording. Recordings can be stored on a suitable SD memory card or dedicated network-attached storage.
ONVIF and VAPIX interfaces support integration with compatible video management systems. Verify the camera firmware, recording software version and required features before deployment.
Ideal Applications
- Maintaining existing installations built around this camera model.
- Indoor entrances with changing light conditions.
- Corridors and reception areas requiring a fixed dome camera.
Compatible Products
The AXIS P3384-V requires IEEE 802.3af/802.3at Type 1 PoE, Class 2, with a maximum camera consumption of 5.9W.
- Intellinet 561518 Gigabit High-Power PoE+ Injector, 30W – Its IEEE 802.3af support meets the camera's power interface requirements. The camera operates at Fast Ethernet speed.
- AXIS T8129 PoE Extender, 5025-281 – Listed by AXIS as a recommended accessory for the P3384-V. Extension distance depends on the power source, cable and installation.
Important: Do not use a passive PoE supply solely because its nominal voltage appears suitable. Use standards-based PoE equipment. When adding an extender, account for its consumption and cable losses.
Technical Specifications
General
- Brand / Manufacturer: AXIS Communications
- Model: P3384-V
- MPN: 0511-001
- Type: Indoor fixed dome network camera
Imaging and Lens
- Sensor: 1/3-inch progressive-scan RGB CMOS
- Resolution: Up to 1280 x 960
- Frame Rate: 25/30 fps at 50/60 Hz
- Lens: 3–9 mm, F1.2, varifocal, P-Iris
- Horizontal Field of View: 84°–30°
- Vertical Field of View: 63°–22°
- Day/Night: Automatically removable IR-cut filter
- Built-in IR Illumination: No
- Lens Adjustment: Remote focus and zoom
- PTZ: Digital
Video, Audio and Storage
- Compression: H.264 Baseline/Main; Motion JPEG
- Audio: Two-way; built-in microphone
- Audio Connections: 3.5 mm microphone/line input; 3.5 mm line output
- Local Storage: SD/SDHC/SDXC card slot; card not included
- Network Storage: NAS recording support
- Integration: VAPIX, ONVIF Profile S and Profile G
Network, Power and I/O
- Ethernet: 1 x RJ45 10BASE-T/100BASE-TX
- Power: IEEE 802.3af/802.3at Type 1, Class 2 PoE
- Maximum Consumption: 5.9W
- Alarm I/O: Terminal block, 1 input and 1 output
Physical and Environmental
- Dimensions: 148 mm diameter x 104 mm height
- Weight: 730 g
- Impact Rating: IK10
- Operating Temperature: 0°C to 50°C
- Operating Humidity: 10%–85% RH, non-condensing
- Storage Temperature: -40°C to 65°C
Documented Included Accessories
- Installation guide
- Windows decoder license for one user
- Resistorx T20 L-key and drilling template
- Connector kit and smoked dome
