PRODUCT SPECIFICATIONS

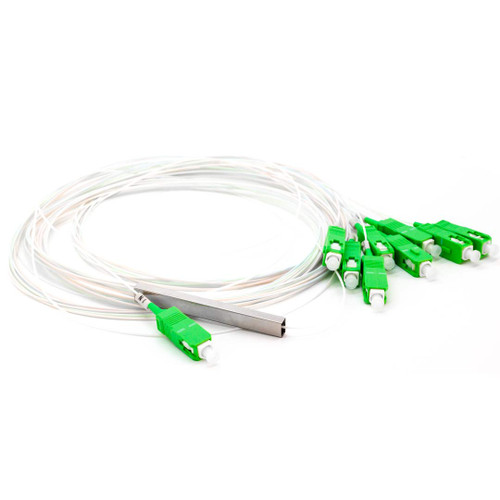

IU-ODN-SP-1x16-M-A - PLANAR LIGHTWAVE CIRCUIT SPLITTER
The IU-ODN-SP-1x16-M-A is a Planar Lightwave Circuit (PLC) Splitter designed for superior performance in various optical networks. This 1x16 splitter efficiently divides optical signals and is ideal for applications requiring high reliability and stability.
Features
- High Uniformity: Ensures even distribution of optical signals.
- Low Insertion Loss: Minimizes signal loss for efficient transmission.
- Compact and Small Size: Easy to install in space-constrained environments.
- High Reliability and Stability: Built for consistent performance in demanding conditions.
- Optional Input and Output: Flexible configuration to meet specific needs.
Applications
- FTTH / FTTC / FTTB
- Passive Optical Networks
- CATV Networks and Data Communications
- Fiber Optic Equipment and Systems
Technical Description
- Type: 1×16
- Operation Wavelength (nm): 1260-1650
- Fiber Type: G657A or customized
- Insertion Loss (dB) (P/): Max 13.8 (P)
- Uniformity (dB): Max 1.2
- PDL (dB): Max 0.25
- Return Loss (dB): Max 55
- Directivity (dB): Min 55
- WDL (dB): Max 0.8
- Temperature Stability (-40 to 85 ℃) (dB): Max 0.5
- Operation Temperature (℃): -40 to 85
- Storage Temperature (℃): -40 to 85
- Bare Device Size (mm) (L×W×H): 60×7×4
- Mini Type (mm) (L×W×H): 60×12×4
- Module Type (mm) (L×W×H): 100×80×18
More Information
MFRPartNum:
IU-ODN-SP-1x16-M-A
