PRODUCT SPECIFICATIONS

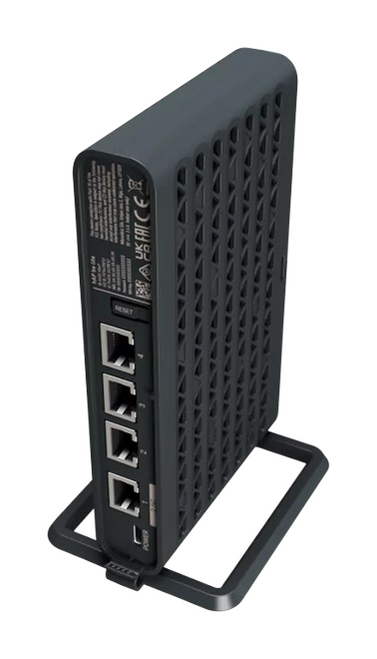

MikroTik A42G-HbeP hAP be lite WiFi 7 Router and Access Point
The MikroTik A42G-HbeP hAP be lite is a compact Wi-Fi 7 router and access point for networks that need RouterOS flexibility in a small indoor device. It supports BE3600 dual-band wireless, Wi-Fi 7 Multi-Link Operation, USB-C powering, three Gigabit Ethernet ports, and one 2.5 Gigabit Ethernet port.
RouterOS v7 gives the hAP be lite advanced control for VLANs, VPNs, traffic shaping, firewall rules, scripting, and centralized access point management with CAPsMAN. The device runs on a dual-core ARM CPU at 950 MHz with 512 MB of RAM and uses passive cooling.
Wi-Fi 7 Performance
The hAP be lite combines a dual-chain 2.4 GHz radio and a triple-chain 5 GHz radio for BE3600-class wireless performance. The 2.4 GHz band supports up to 688 Mbit/s, while the 5 GHz band supports up to 2882 Mbit/s.
Compact Wired and Wireless Deployment
With one 2.5 Gigabit Ethernet port and three 10/100/1000 Ethernet ports, the hAP be lite can support high-speed uplinks, workstations, NAS devices, and other wired network roles. USB-C input at 5 V and up to 12 W max power consumption help simplify placement in compact indoor setups.
Key Features
- Wi-Fi 7 BE3600 dual-band router and access point
- Wi-Fi 7 Multi-Link Operation support
- 2.4 GHz dual-chain and 5 GHz triple-chain wireless radios
- One 2.5 Gigabit Ethernet port and three Gigabit Ethernet ports
- RouterOS v7 with RouterOS license level 4
- Dual-core ARM CPU at 950 MHz with 512 MB RAM
- USB-C 5 V DC input and passive cooling
- Updated CAPsMAN support for centralized MikroTik access point management
Applications
- Compact home or small office Wi-Fi 7 networks
- Indoor deployments where low power use and USB-C powering simplify placement
- Mixed wireless and wired setups with laptops, phones, tablets, workstations, and NAS devices
- High-speed uplink use through the 2.5 Gigabit Ethernet port
- MikroTik RouterOS deployments that need VLANs, VPNs, traffic shaping, firewall rules, scripting, or CAPsMAN management
Technical Specifications
- Ports / Interfaces
- 10/100/1000 Ethernet ports: 3
- Number of 2.5G Ethernet ports: 1
- Number of DC inputs: 1 (USB-C)
- Wireless
- WiFi speed: BE3600
- Wireless 2.4 GHz Max data rate: 688 Mbit/s
- Wireless 2.4 GHz Number of chains: 2
- Wireless 2.4 GHz standards: 802.11b/g/n/ax/be
- Antenna gain dBi for 2.4 GHz: 4.4
- Wireless 2.4 GHz chip model: MT7991
- Wireless 2.4 GHz generation: Wi-Fi 7
- Wireless 5 GHz Max data rate: 2882 Mbit/s
- Wireless 5 GHz Number of chains: 3
- Wireless 5 GHz standards: 802.11a/n/ac/ax/be
- Antenna gain dBi for 5 GHz: 7
- Wireless 5 GHz chip model: MT7991
- Wireless 5 GHz generation: Wi-Fi 7
- Hardware
- Product code: A42G-HbeP
- Architecture: ARM 32bit
- CPU: AN7563PT
- CPU core count: 2
- CPU nominal frequency: 950 MHz
- CPU Threads count: 2
- Switch chip model: AN7563PT
- Size of RAM: 512 MB
- Storage size: 128 MB
- Storage type: NAND
- MTBF: Approximately 100'000 hours at 25C
- Power
- Max power consumption: 12 W
- Cooling type: Passive
- USB C input Voltage: 5 V
- Included parts: 5 V 2.4 A power adapter (black)
- Environmental
- Tested ambient temperature: -40°C to 50°C
- Software
- RouterOS license: 4
- Operating System: RouterOS v7
- Operating system: Preinstalled and licensed
- Software updates: Free software updates for the life of the product or a minimum of 5 years starting from date of purchase
- Certifications
- Certification: CE, FCC, IC, EAC, ROHS
- IP: 20
