PRODUCT SPECIFICATIONS
Mikrotik CRS804-4DDQ-hRM CRS804 DDQ
A compact 1U 400G switch built for AI clusters, storage fabrics, and high-speed aggregation, featuring four 400G QSFP56-DD ports, dual 10 Gigabit Ethernet, and RouterOS v7. With hot-swap power supplies, robust cooling, and low power consumption, it delivers ultra-high bandwidth, wire-speed performance, and future-proof scalability at an accessible price point.
Key Fetures
- 4 GB of RAM
- Quad-core 2 GHz ARM CPU
- Dual-redundanthot-swap power supplies

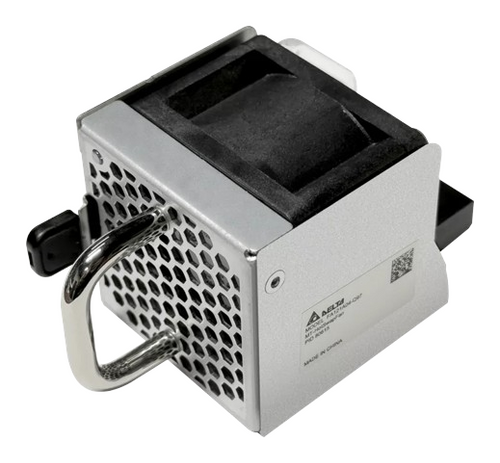

- 2x hot-swap cooling fans
- RouterOS v7
- Specifications:
- Architecture: ARM 64bit
- CPU: AL52400
- CPU core count: 4
- CPU nominal frequency: 2000 MHz
- CPU Threads count: 4
- Switch chip model: 98DX7335
- RouterOS license: 6
- Operating System: RouterOS v7
- Size of RAM: 4 GB
- Storage size: 512 MB
- Storage type: NAND
- MTBF: Approximately 200'000 hours at 25C
- Tested ambient temperature: -10°C to 60°C
- Powering:
- Number of AC inputs: 2
- AC input range: 100-240
- Frequency (Hz): 50-60
- Max power consumption: 123 W
- Max power consumption without attachments: 92 W
- Cooling type: 2 fans
- Ethernet:
- Number of 1G/2.5G/5G/10G Ethernet ports: 2 (supported: 10M/100M/1G/10G)
- Number of 400G QSFP56-DD ports: 4
- Peripherals:
- Serial console port: RJ45
- Other:
- CPU temperature monitor: Yes
- PCB temperature monitor: Yes
- Voltage Monitor: Yes
- Certification & Approvals:
- Certification: CE, EAC, ROHS
- IP: 20
- Included parts:
- 2x IEC cords
- Rackmount bracket white
- Rackmount rear support ears (2/2)
- Rackmount bracket (long)
- RMK-2x10/19
- K-99 fastening set
More Information
MFRPartNum:
CRS804-4DDQ-hRM
