PRODUCT SPECIFICATIONS

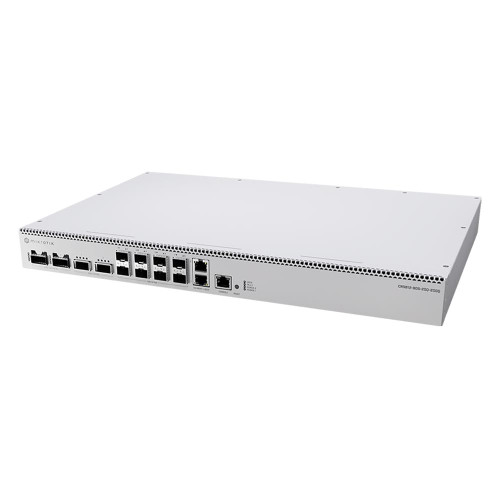

MikroTik CRS812-8DS-2DQ-2DDQ-RM – 400G Cloud Router Switch
The MikroTik CRS812-8DS-2DQ-2DDQ-RM (CRS812 DDQ) is a high-density 400G Cloud Router Switch built for data centers, ISP core networks, enterprise backbones, and high-performance aggregation environments.
Designed for modern spine-leaf architectures and high east-west traffic, this multi-speed switch supports 50G, 200G, and 400G connectivity, enabling scalable and future-ready network deployments. Whether used as a core aggregation switch or a data center spine device, the CRS812 DDQ delivers high throughput with flexible port configurations.
Powered by RouterOS v7, it provides advanced Layer 2 and Layer 3 features including VLANs, static and dynamic routing, traffic engineering, MPLS, and full traffic control capabilities.
Ports Configuration
- 2 × 400G QSFP56-DD ports
- 2 × 200G QSFP56 ports
- 8 × 50G SFP56 ports
- 2 × 10G Ethernet (RJ45) management ports
The QSFP56 and QSFP56-DD interfaces support breakout modes, allowing deployment of 50G, 25G, and 10G connections depending on transceivers and cables. This makes the CRS812-8DS-2DQ-2DDQ-RM ideal for mixed-speed and migration-ready network environments.
Hardware and Reliability
- Quad-core ARM CPU (2 GHz)
- 4 GB RAM
- Dual hot-swappable power supplies
- Four removable cooling fans
- 1U rackmount chassis
- Designed for continuous 24/7 operation
The redundant power and cooling design ensures reliability in mission-critical environments such as ISP cores, AI clusters, and enterprise data centers.
Use Cases
- Data center spine or leaf switching
- 400G backbone aggregation
- ISP core and distribution layers
- High-performance compute and AI clusters
- Enterprise campus core upgrades from 10G/25G to 50G/200G/400G
Why Choose the CRS812 DDQ?
- Supports 50G, 200G, and 400G networking in one platform
- Flexible breakout options for scalable deployment
- Advanced routing and switching with RouterOS v7
- Data center-ready design with redundant power
- Competitive cost compared to traditional 400G enterprise switches
For organizations upgrading from 10G or 25G infrastructure to higher-speed networking, the MikroTik CRS812-8DS-2DQ-2DDQ-RM provides a scalable, high-performance solution without unnecessary complexity.
Technical Description:
- Specifications
- Product code: CRS812-8DS-2DQ-2DDQ-RM
- Architecture: ARM 64bit
- CPU: AL52400
- CPU core count: 4
- CPU nominal frequency: 2000 MHz
- CPU Threads count: 4
- Switch chip model: 98DX7335
- RouterOS license: 6
- Operating System: RouterOS v7
- Size of RAM: 4 GB
- Storage size: 512 MB
- Storage type: NAND
- MTBF: Approximately 200'000 hours at 25C
- Tested ambient temperature: -10°C to 50°C
- Powering
- Number of AC inputs: 2
- AC input range: 100-240
- Number of PSU slots: 2
- Frequency (Hz): 50-60
- Max power consumption: 134 W
- Max power consumption without attachments: 81 W
- Cooling type: 4 fans
- Ethernet
- Number of 1G/2.5G/5G/10G Ethernet ports: 2 (supported: 10M/100M/1G/10G)
- Number of 50G SFP56 ports: 8
- Number of 200G QSFP56 ports: 2
- Number of 400G QSFP56-DD ports: 2
- Peripherals
- Serial console port: RJ45
- Other
- CPU temperature monitor: Yes
- PCB temperature monitor: Yes
- Voltage Monitor: Yes
- Certification & Approvals
- Certification: CE, EAC, ROHS
- IP: 20
