PRODUCT SPECIFICATIONS

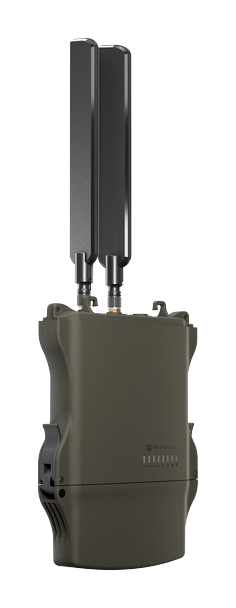

MikroTik L23UGSR-5HaxD2HaxD-NM
A powerful dual-band, dual-chain Wi-Fi 6 radio offers increased speed, stability, security, roaming, power management, and other features, compared to the previous wireless protocols. Two RP-SMA connectors allow adding an antenna of your choice for distances up to 30 kilometers.. If necessary, you can adapt the NetMetal ax for lower range use with such antennas as our HGO-antenna-OUT screw-on omni antenna unit. It provides 3.3 dBi gain for the 2.4 GHz band and 5.5-7.1 dBi gain for the 5 GHz band. If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs.
Technical Specification
- Product code: L23UGSR-5HaxD2HaxD-NM
- CPU: Dual-Core IPQ-5010 800 MHz
- CPU architecture: ARM
- Size of RAM: 256 MB
- RAM type: DDR3L
- Storage: 128 MB, NAND
- Number of 1G Ethernet ports: 1
- Number of 2.5 Gbps SFP ports: 1
- MiniPCIe slots: 1 (Only for LTE, LoRA cards)
- USB port: 1 USB 2.0 port type A
- SIM slot: 1 NanoSIM
- Wireless interface model: IPQ-5010 (2.4 GHz), QCN-6102 (5 GHz)
- Wireless: 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain
- Dimensions: 143 x 247 x 48 mm
- Operating system: RouterOS v7, License level 4
- Operating temparature: -40°C to +70°C
-
Powering:
- Number of DC inputs: 2 (PoE-In, DC jack)
- PoE-In input: Voltage 18-28 V
- DC jack input: voltage 12-28 V
- Power adapter nominal voltage: 24 V
- Power adapter nominal current: 1.2 A
- Max USB current: 1.5 A
- PoE-In: Passive PoE
- Max power consumption without attachments: 12 W
- Max power consumption: 25 W
- Certification: CE, FCC, IC, IP66
- Included parts:
- 24 V 1.2 A power adapter
- Gigabit PoE injector
- Metal ring
- Mount set
More Information
MFRPartNum:
L23UGSR-5HaxD2HaxD-NM
