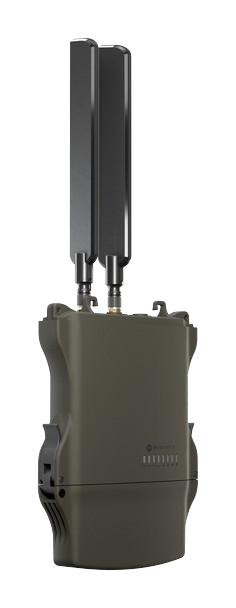

MikroTik NetMetal ax L23UGSR-5HaxD2HaxD-NM-US Outdoor WiFi 6 Access Point IP66 2.5G SFP PoE

Mikrotik L23UGSR-5HaxD2HaxD-NM-US

Meet one of your most versatile companions: the NetMetal ax – a powerful long-range outdoor access point that thrives in any environment. Designed for extra durability, it can be installed almost anywhere with ease – you can open and close the case with one hand. The rated IP66 protection will keep the device safe from dust and powerful water jets - in damp attics and elevator shafts, bustling docks, or coastal tower structures. No terrain is too rough for the NetMetal ax – the Mars rover of networking!

It features a modern dual-core ARM CPU, Gigabit Ethernet and 2.5 Gigabit SFP for fiber connectivity, a USB port, and a free miniPCIe slot that allows further customization. You could, for example, add an LTE modem for a mobile internet backup – we’ve added a NanoSIM slot on the NetMetal! But there are other options, like adding a gateway for LoRa IoT setups, such as our R11e-LR8!

Key Features

• Operation in the 2.4 GHz and 5 GHz bands.
• Wi-Fi 6, 802.11 b/g/n/a/ac/ax standard.
• Bandwidth up to 574 Mb/s in the 2.4 GHz band and up to 1201 Mb/s in the 5 GHz band.
• 1x Gigabit Ethernet PoE-in port.
• 1x 2.5G SFP slot.
• MiniPCIe card slot.
• USB 2.0 port.
• NanoSIM card slot.
• 2x RP-SMA antenna connectors (with pin, external thread).
• PoE-In 18-28 V power supply or 12-28 V DC socket.
• RouterOS system with Level 4 license.

Technical Specification

• Architecture: ARM 64bit
• CPU: IPQ-5010
• CPU core count: 2
• CPU nominal frequency: 800 MHz
• RouterOS license: 4
• Operating System: RouterOS v7
• Size of RAM: 256 MB
• Storage size: 128 MB
• Storage type: NAND
• MTBF: Approximately 200'000 hours at 25C
• Tested ambient temperature: -40°C to 70°C
• Powering:
  • Number of DC inputs: 2 (DC jack, PoE-IN)
  • DC jack input Voltage: 12-28 V
  • Max power consumption: 25 W
  • Max power consumption without attachments: 12 W
  • Cooling type: Passive
  • PoE in: Passive PoE
  • PoE in input Voltage: 18-28 V
• Wireless specifications:
  • Wireless 2.4 GHz Max data rate: 574 Mbit/s
  • Wireless 2.4 GHz number of chains: 2
  • Wireless 2.4 GHz standards: 802.11b/g/n/ax
  • Wireless 2.4 GHz chip model: IPQ-5010
  • Wireless 2.4 GHz generation: Wi-Fi 6
  • Wireless 5 GHz Max data rate: 2400 Mbit/s
  • Wireless 5 GHz number of chains: 2
  • Wireless 5 GHz standards: 802.11a/n/ac/ax
  • Wireless 5 GHz chip model: QCN-6102
  • Wireless 5 GHz generation: Wi-Fi 6
• Ethernet:
  • 10/100/1000 Ethernet ports: 1
• Fiber:
  • SFP ports: 1 (2.5G supported)
• Peripherals:
  • Number of SIM slots: 1 Modem (Nano SIM)
  • MiniPCI-e slots: 1
  • Number of USB ports: 1
  • USB Power Reset: Yes
  • USB slot type: USB type A
  • Max USB current (A): 1.5
• Other:
  • PCB temperature monitor: Yes
  • Voltage Monitor: Yes
  • Beeper: Yes
• Certification & Approvals:
  • Certification: CE, FCC, IC, EAC, ROHS
  • IP: 66
• Included Parts:
  • 24V 1.2A power adapter
  • Gigabit PoE injector
  • Metal ring (one)
  • DIN mount (K-27)
