PRODUCT SPECIFICATIONS

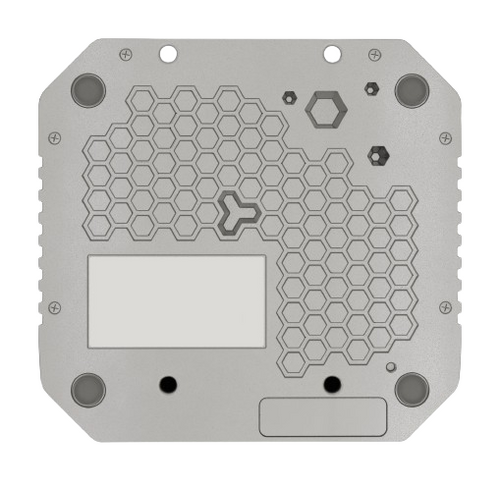

LtAP LTE6 kit - Compact heavy-duty LTE access point with a built-in GPS.
Add extensive networking and tracking options to your vehicle without breaking the bank! 3 MiniSIM slots, multiple power options, extra miniPCI-e slot, console port.
The LtAP LTE6 kit is a compact, rugged LTE access point designed for demanding environments, offering extensive networking and tracking capabilities. It is ideal for logistics, transportation, and mobile applications, with a robust weatherproof case and flexible power options.
In a world where connectivity knows no boundaries and the roughest terrain demands reliable networks and affordable location tracking, the LtAP LTE6 kit stands out. This compact wireless access point with built-in GPS comes in our most durable weatherproof case ever.
The LtAP LTE6 Kit is designed to meet the demands of high-speed connectivity and location tracking in various challenging environments, making it an ideal solution for logistics, tracking, and other mobile applications.
This device is designed to keep your network connected in the most challenging environments, making it an excellent choice for mobile and outdoor networking needs.
Key Features
- Durability: The device is housed in a weatherproof IP54-rated case, ensuring reliability in harsh environments.
- 3 MiniSIM Slots: Supports LTE, Wi-Fi, and GPS with three MiniSIM slots for automatic roaming. It allows automatic roaming and switching to mobile operators across borders.
- Built-in LTE and GPS Antennas: Includes internal LTE antennas and external connectors for enhanced coverage and GPS performance.
- Flexible Power Options: Features a DC jack, passive PoE-in, and an automotive connector, with the option to power through a 20,000 mAh power bank.
- Customization Potential: Equipped with two miniPCI-e slots, one for the LTE modem and another for expansion options such as a 5 GHz interface or a second LTE modem.
- Category 6 LTE Modem: Supports a variety of LTE frequencies with carrier aggregation, offering speeds up to 300 Mbps and improved efficiency in crowded environments, ideal for areas with high LTE usage.
Applications
- Logistics and Tracking: Ideal for vehicles, offering seamless connectivity across borders with automatic roaming.
- Mobile Networks: Supports high-speed LTE with carrier aggregation for reliable connectivity on the move.
- Customizable Networks: Expand functionality with additional miniPCI-e modules, making it suitable for diverse applications.
Technical Description
- Product Code: LtAP-2HnD&FG621-EA
- Architecture: MMIPS
- CPU: MT7621AT, Dual-core, 880 MHz
- RAM: 128 MB DDR3
- Storage: 16 MB Flash
- RouterOS License: Level 4
- Operating System: RouterOS v7
- Dimensions: 170 x 162 x 40 mm
- Operating Temperature: -40°C to +70°C
- MTBF: Approximately 200,000 hours at 25°C
- IP Rating: IP54
- Powering:
- DC Inputs: 3 (PoE-IN, Automotive, DC jack)
- DC Jack Input Voltage: 12-30 V
- Automotive Input Voltage: 12-27 V
- Max Power Consumption: 24 W (12 W without attachments)
- PoE In: Passive PoE, 12-30 V
- Mobile Specifications:
- LTE Category: 6 (300 Mbps Downlink, 50 Mbps Uplink)
- LTE FDD Bands: 1, 3, 5, 7, 8, 20, 28
- LTE TDD Bands: 38, 40, 41
- 3G Bands: 1, 3, 5, 8
- 3G Category: R8 (42.2 Mbps Downlink, 11.2 Mbps Uplink)
- Wireless Specifications:
- 2.4 GHz Wireless: 802.11b/g/n, Dual-chain
- Max Data Rate: 300 Mbps
- Antenna Gain: 2.5 dBi
- Transmit Power: Up to 26 dBm
- Receive Sensitivity: Down to -96 dBm
- Ethernet:
- Ports: 1 x 10/100/1000 Ethernet
- Peripherals:
- MiniPCI-e Slots: 2
- SIM Slots: 3 (Mini SIM)
- Serial Console Port: RS232
- USB Port: 1 USB 2.0 Type A
- USB Power Reset: Yes
- Max USB Current: 1 A
- Certification & Approvals:
- Certifications: CE, FCC, IC, E-MARK, EAC, ROHS
- Included Parts:
- 24V 1.2A Power Adapter
- Screw Set
- Automotive Cable
