Mikrotik

Part:
RB5009UG+S+IN

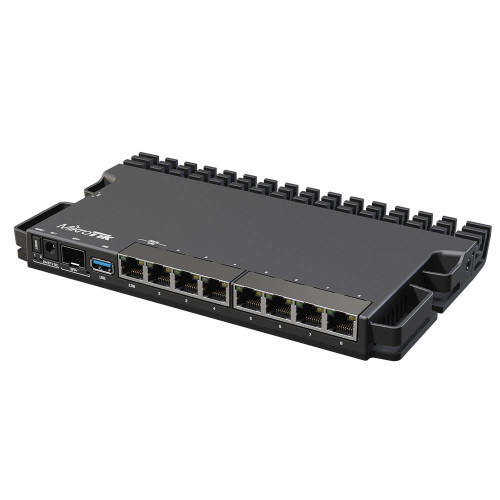

Mikrotik RB5009UG Marvell Armada Router (7) 10/100/1000 Ethernet port

$189.99
$219.00
Condition:
New

PRODUCT SPECIFICATIONS

SKU: RB5009UG+S+IN

Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!

The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!

RB5009UG+S+IN can be powered in 3 different ways:

  • PoE-in from Ethernet port #1
  • DC Jack
  • 2-pin terminal on the side

Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.

With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.

Technical Description

  • Specifications
    • Product code: RB5009UG+S+IN
    • Architecture: ARM 64bit
    • CPU: 88F7040
    • CPU core count: 4
    • CPU nominal frequency: 350-1400 (auto) MHz
    • Switch chip model: 88E6393
    • RouterOS license: 5
    • Operating System: RouterOS v7
    • Size of RAM: 1 GB
    • Storage size: 1 GB
    • Storage type: NAND
    • MTBF: Approximately 200'000 hours at 25C
    • Tested ambient temperature: -40°C to 60°C
    • IPsec hardware acceleration: Yes
  • Powering
    • Number of DC inputs: 3 (DC jack, PoE-IN, 2-pin terminal)
    • DC jack input Voltage: 24-57 V
    • 2-pin terminal input Voltage: 24-57 V
    • Max power consumption: 20 W
    • Max power consumption without attachments: 14 W
    • Cooling type: Passive
    • PoE in: 802.3af/at
    • PoE in input Voltage: 24-57 V
  • Ethernet
    • 10/100/1000 Ethernet ports: 7
    • Number of 2.5G Ethernet ports: 1
  • Fiber
    • SFP+ ports: 1
  • Peripherals
    • Number of USB ports: 1
    • USB Power Reset: Yes
    • USB slot type: USB 3.0 type A
    • Max USB current (A): 1.5
  • Other
    • CPU temperature monitor: Yes
  • Certification & Approvals
    • Certification: CE, EAC, ROHS

More Information

MFRPartNum:
RB5009UG+S+IN
Datasheet:
