PRODUCT SPECIFICATIONS

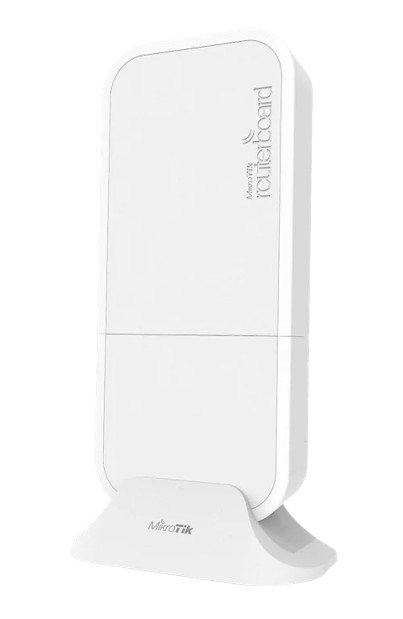

Mikrotik RBwAPR-2nD&R11e-LTE-US wAP LTE kit US
The wAP LTE Kit-US is a small weatherproof wireless access point with a built in cellular modem that supports 3G and 4G (LTE) connectivity. Connect to the wAP’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The wAP LTE also has one 10/100 Ethernet LAN port for your wired devices.
LTE cards are connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for larger coverage. Unit has the several powering options - 9-30v PoE-in by Ethernet port, DC jack and Automotive connector, very handy in mobile devices like car, bus or train.
RBwAPR-2nD&R11e-LTE-US includes LTE modem that supports LTE bands 2,4,5 and 12, mostly used by mobile operators in United States, Canada and Latin America.
Key Features
- Automotive
- LTE Cat4
- Mini PCI-e
- Outdoors
- PoE
- Specifications:
- Architecture: MIPSBE
- CPU: QCA9531
- CPU core count: 1
- CPU nominal frequency: 650 MHz
- Dimensions: 185 x 85 x 30 mm
- RouterOS license: 4
- Operating System: RouterOS
- Size of RAM: 64 MB
- Storage size: 16 MB
- Storage type: FLASH
- MTBF: Approximately 100'000 hours at 25C
- Tested ambient temperature: -40°C to 60°C
- Powering:
- Number of DC inputs: 3 (DC jack, PoE-IN, Automotive)
- DC jack input Voltage: 9-30 V
- Automotive input Voltage: 9-30 V
- Max power consumption: 8 W
- PoE in: Passive PoE
- Cooling type: Passive
- PoE in input Voltage: 9-30 V
- Mobile:
- 3G Category:
- R8 (42.2Mbps Downlink, 5.76Mbps Uplink) / R7 (21Mbps Downlinks, 5.76Mbps Uplink)
- 3G bands:
- 2 (1900MHz)
- 5 (850MHz)
- LTE Category:
- 4 (150Mbps Downlink, 50Mbps Uplink)
- LTE FDD bands:
- 2 (1900MHz)
- 4 (1700MHz)
- 5 (850MHz)
- 12 (700MHz)
- TAC:
- 35550909
- 3G Category:
- Wireless specifications:
- Wireless 2.4 GHz Max data rate: 300 Mbit/s
- Wireless 2.4 GHz Number of chains: 2
- Wireless 2.4 GHz standards: 802.11b/g/n
- Antenna gain dBi for 2.4 GHz: 2
- Wireless 2.4 GHz chip model: QCA9531
- Wireless 2.4 GHz generation: Wi-Fi 4
- Ethernet:
- 10/100 Ethernet ports: 1
- Peripherals:
- Number of SIM spots: 1 Modem (Mini SIM)
- MiniPCI-e spots: 1
- Other:
- PCB temperature monitor: Yes
- Voltage Monitor: Yes
- Certification & Approvals:
- Certification: CE, FCC, IC, EAC, ROHS
- Included parts:
- K-50 locking set
- 24V 0.8A power adapter
- PoE injector
- Plastic zip tie
- 0.35m 4pin Automotive adapter cable
- wAP ceiling mount bracket
- wAP desktop stand
- wAP mount
- K-52 fastening set
- Note: The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
