PRODUCT SPECIFICATIONS

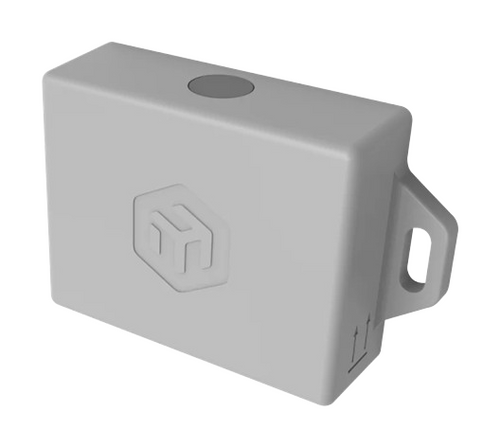

MikroTik TG-LR92 LoRaWAN Sensor Tag
The MikroTik TG-LR92 is a configurable LoRaWAN sensor tag for monitoring temperature, humidity, motion, tilt, and event conditions across IoT deployments. This model is the 902-928MHz version and is designed for use with long-range LoRaWAN sensor networks.
The TG-LR92 combines multiple sensors, configurable reporting profiles, intelligent event rules, and flexible LoRaWAN downlink configuration in a compact IP67-rated device. MikroTik positions it for demanding deployments such as environmental monitoring, equipment monitoring, storage facilities, logistics, and cold-chain use cases.
Configurable Sensor Monitoring
The TG-LR92 supports temperature and humidity monitoring, motion and tilt detection, impact or free-fall detection, and magnetic reed switch use for doors, lids, cabinets, or magnet-based interaction. The device can generate event-based telemetry and supports local processing such as temperature and humidity averages or histograms before transmitting data.
LoRaWAN Deployment Flexibility
The TG-LR92 supports LoRaWAN 1.0.4 Class A and B operation. It also supports 2.4 GHz LoRa for deployments where a globally usable LoRa band is useful, with typical range around 1.5 km depending on the gateway antenna and environment.
Key Features
- Configurable LoRaWAN sensor tag for demanding IoT deployments
- 902-928MHz version for the TG-LR92 model
- Temperature, humidity, motion, and tilt monitoring
- Magnetic reed switch support for doors, lids, cabinets, and magnet interaction
- Event-based telemetry with configurable profiles and rules
- Supports temperature and humidity averages or histograms before telemetry transmission
- Expected battery lifetime up to 5 years
- IP67-rated enclosure
Applications
- Temperature-sensitive goods and cold-chain monitoring
- Storage facility and cabinet monitoring
- Door, lid, and equipment event detection using the magnetic reed switch
- Motion, tilt, impact, and free-fall monitoring for assets or equipment
- Environmental research and long-range IoT sensor deployments
- IoT telemetry visualization with monitoring platforms such as Grafana
Technical Specifications
- Wireless
- LoRaWAN support: LoRaWAN 1.0.4 Class A, B
- Regional version: 902-928MHz version
- 2.4 GHz LoRa: Supported
- Gateway compatibility: Designed to work with MikroTik LR9 gateways
- Hardware
- Product code: TG-LR92
- Sensors: TMP116N, HDC2010, LIS2DW12
- Magnetic reed switch: Supported
- Configurable profiles: 6 configurable profiles
- Custom rules: Up to 32 custom user rules
- MTBF: Approximately 100'000 hours at 25C
- Power
- Expected battery lifetime: Up to 5 years
- Physical
- Included mounting accessory: TG_LR82_92 mounting bracket
- Included screw accessory: TG_LR82_92 screw set
- Environmental
- Tested ambient temperature: -10°C to 70°C
- IP rating: 67
- Software
- Configuration: Flexible configuration via LoRaWAN downlinks
- Monitoring platform support: Sensor data can be visualized and analyzed using modern monitoring platforms such as Grafana
- Certifications
- Certification: FCC, IC
