Mimosa Networks

Part:
502-00022

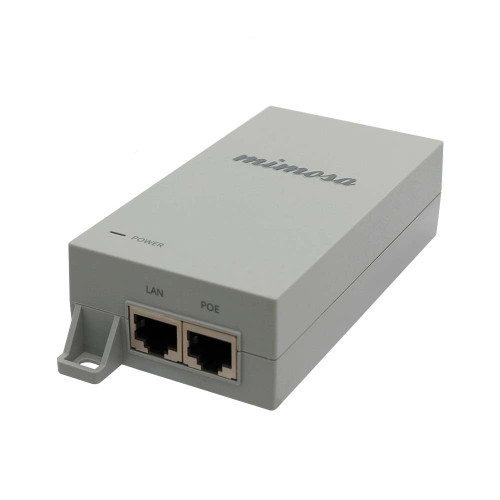

Mimosa Gigabit PoE Injector 50V (Power Cord not included)

$20.90
$21.00
Condition:
New

PRODUCT SPECIFICATIONS

The Mimosa Gigabit PoE 50V passive PoE is a compact and clutter-free, eliminating the typical installation mess of power strips and extension cords. Leave behind a professional-looking installation while reducing the chances of accidental power disconnects caused by consumers tapping into power strips.

Compatible with

Dimensions (L x W x H)

  • 138 mm x 62 mm x 35 mm
  • 5.4” x 2.4” x 1.4”

Weight

  • 0.24 kg
  • 8.8 oz

Technical Description

  • Part Number: 502-00022
  • Color: Grey
  • Gigabit LAN: Yes, (2) RJ-45
  • Output Voltage: 50 V === 1.2A
  • Max Current Load: 1.2A (60 W)
  • Pinout: PIN 1/2 and 4/5: +50 V PIN 3/6 and 7/8: GND
  • Input Voltage: 100–240 VAC ~ 50/60 Hz; Max 1.5A
  • Input Current: 1.5A @ 115 VAC; 1.0A @ 230 VAC
  • Input Frequency: 47–63 Hz
  • Max In-Rush Current: 150A

More Information

MFRPartNum:
502-00022
Datasheet:
