PRODUCT SPECIFICATIONS

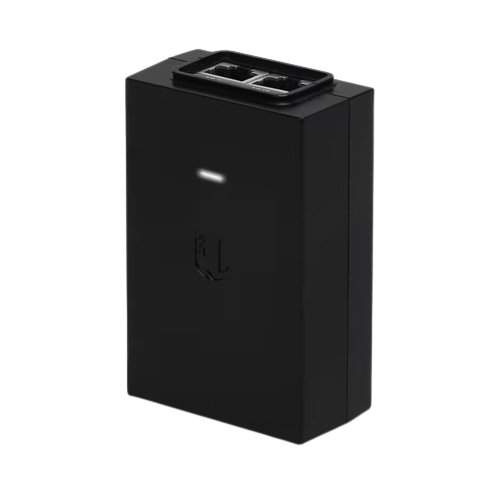

The Tycon Systems TP-POE-24G-12W is a compact and reliable Gigabit Passive PoE injector designed to deliver both power and data over a single Ethernet cable for remote network devices. Built for professional networking environments, this injector provides 24V passive PoE output up to 12W, making it ideal for powering wireless radios, IP cameras, VoIP devices, and other low-power PoE equipment.
With support for 10/100/1000 Mbps data rates, this unit ensures full Gigabit throughput while simplifying installations by eliminating the need for separate power wiring. Its auto-ranging 100–240VAC input allows deployment in a wide range of environments without additional power adapters.
Key Features
- 24V Passive PoE Output (Mode B) – Reliable power delivery on pins 4,5 (+) and 7,8 (-)
- Up to 12W Output Power – Suitable for low-power networking devices
- Gigabit Ethernet Support – 10/100/1000 Mbps data throughput
- Auto-Ranging AC Input (100–240V) – Works globally without configuration
- Compact Desktop Design – Easy to deploy in tight spaces
- Shielded RJ45 Ports – Improved signal integrity and protection
- Plug-and-Play Operation – No configuration required
- Includes Power Cord – Ready for immediate deployment
More Information
MFRPartNum:
TP-POE-24G-12W
