Part:
TP-POE-24-12W

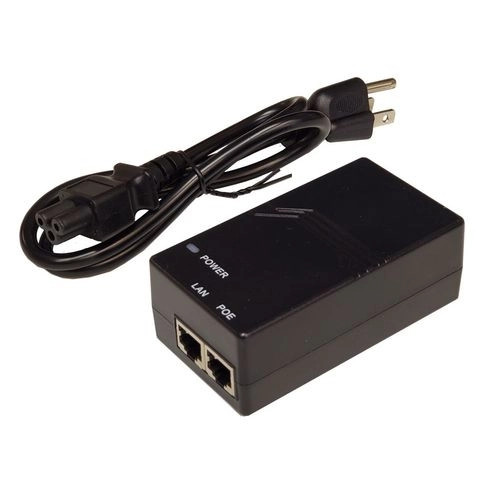

Tycon 100-240VAC Autoranging IN. 24V 12W Passive PoE Injector. US Power Cord

$14.95
Condition:
New

PRODUCT SPECIFICATIONS

The TP-POE-24-12W is a compact 10/100MB desktop passive PoE inserter with 120/240VAC auto-ranging input.

The reliable UL Listed inserter has an output that is Mode B (4,5+ 7,8-) Passive PoE at up to 12W. It comes with a 3 prong 2’ North American power cord with IEC C5 plug.

Features

  • 10/100Mb Data Rate
  • CAT5 (or higher) Compatible.
  • Compact Size, Shielded RJ45 Jacks
  • I.T.E. Power Supply, UL Listed

Applications

  • Passive PoE Wireless Devices
  • Passive PoE Security Cameras

Dimensions (LxWxH)

  • 3.65 x 1.1 x 1.8” (93 x 30 x 47mm)

Weight

  • 3oz (87g)

Technical Description

  • AC Input Voltage 100-240VAC 50/60Hz
  • Output PoE Voltage 24VDC +/-5% Passive PoE, Mode B (Pins 4,5+ 7,8-)
  • Maximum Load 0.5A(12W) Max
  • Protections Short Circuit, Overcurrent, Surge/ESD (10kV)
  • Efficiency 83% Minimum
  • Ripple and Noise 200mV p-p
  • Data Rate 10/100Mbps
  • No Load Consumption 0.1W Max
  • Operating Temperature -20 to +50°C
  • Storage Temperature -30 to +70°C
  • Operating Humidity 5% to 90% non condensing
  • MTBF 30,000 Hrs
  • Certifications UL, CE, FCC | IEC 60065, IEC60950, UL60950-1, EN55022, EN55013, EN55024, EN55020, EN61000-4-5, EN61000-4-4, EN61000-4-5
  • Connectors RJ45 Shielded Jacks
  • Ethernet Cable Compatibility CAT5 (or higher)

More Information

MFRPartNum:
TP-POE-24-12W
Datasheet:
