Tycon Power Systems

Part:
RPPL12-36-35

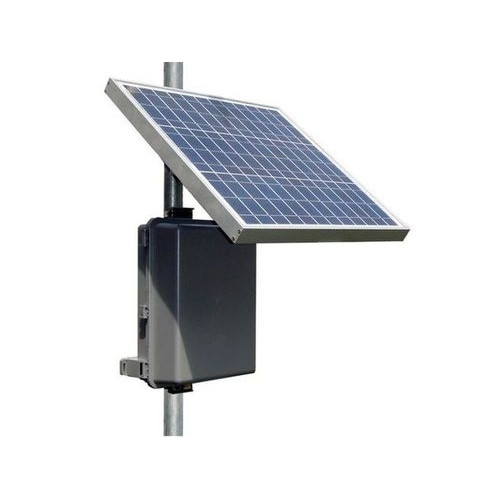

Tycon RemotePro8W Remote Power System. 36Ah Battery. 35W Solar. 12V 20A PWM Controller. Polycarbonate Enclosure

$522.45
$549.95
Condition:
New

PRODUCT SPECIFICATIONS

The RemotePro PL series (RPPL) outdoor power systems are designed for applications that require a primary off-grid power source to run various electronics. The sealed and weatherproof Polycarbonate enclosures hold up to four 12V 8.5AH batteries. The enclosures are hinged and gasket sealed. They can accept a padlock of tamper seal.

The enclosures can be mounted to a wall or pole with the included mounting bracket system.

The high quality solar panels have a 25year power output guarantee. The 30W solar panels can be mounted to a 51mm to 101mm (2" to 4") diameter pole or alternately to a wall with the included bracket kit.

Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid batteries. Most of the RPPL systems include a controller with built in POE inserter and DCDC converter to supply 24V or 48V POE from the 12V or 24V battery system. Enclosures have multiple ports for CAT5/6 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.

Batteries are an Advance Glass Matt (AGM) type which have good all temperature performance.

Features

  • Complete Remote Power Solution for Off-Grid operation
  • Weatherproof, UV resistant, outdoor enclosures
  • Enclosures can be Wall or Pole Mounted
  • High Performance Valve Regulated Sealed Lead Acid Batteries
  • Advanced battery charge controller protects against overcharge and over discharge

Applications

  • Wireless Base Stations and Clients
  • Surveillance Cameras
  • Wireless Bridge and Repeaters
  • Remote Sensors
  • Remote Lighting
  • Backup Power Systems

Enclosure External Size

  • 17.5 x 12.5 x 6” (445x318x152mm)

Enclosure Internal Size

  • 14 x 10 x 5” (356x254x127mm)

System Weight (no batteries)

  • 22lb (10kg)

Battery Weight

  • 22lb (10kg)

Technical Description

  • Rated Power Generation: 8W
  • Reserve Time @ Rated Power: 27hrs
  • POE Output Voltage (DC): No POE Out
  • Secondary Volts Out (DC): 12V 20A
  • Battery Capacity (Amp Hrs): 36Ah
  • Battery Voltage (DC): 12V
  • Battery Type: Valve Regulated Sealed Lead Acid / Absorbed Glass Mat (AGM)
  • Battery Life: 5 Years
  • Controller Type: PWM
  • Overcharge Protection: 14.4V
  • Over-discharge protection: 11.0V
  • Over-discharge recovery volts: 12.5V
  • Controller Self Consumption: < 0.5W
  • Enclosure Type: Polycarbonate
  • Solar Panel Dims: 26” X 16” (654 x 401mm)
  • Operating Temperature: -30°C to +60°C (-22°F to 140°F)
  • Wind Speed Rating: 110MPH (49m/s)

More Information

MFRPartNum:
RPPL12-36-35
