Tycon Power Systems

Part:
TP-POE-HP-48Dx2

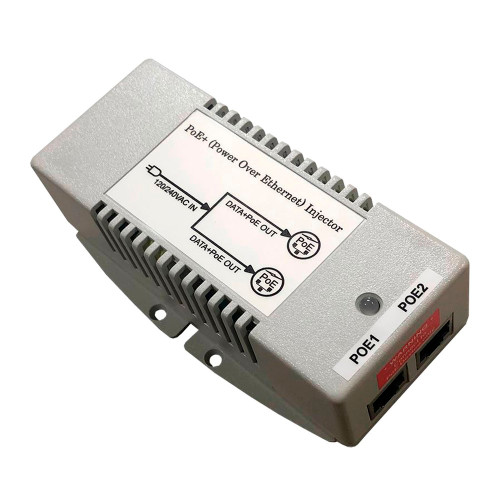

Tycon TP-POE-HP-48Dx2 DC to DC Converter 90-264VAC 47-63hz In 56VDC Out 50W Dual 802.3at PoE Outputs

$64.90
$65.00
Condition:
New

PRODUCT SPECIFICATIONS

The TP-POE-HP-48DX2 is a unique high power PoE injector with Dual 802.3af/at compatible outputs. This means that two devices can be powered from a single PoE injector. The data path between the units is handled by the injector so no PoE switch is required.

Power Output is 50W total or 25W per port.

They have a standard removable power cord input (North American Power Cord Included). They have various protections for short circuit, overload, and surges caused by ESD or lightning. The built-in surge protection protects sensitive connected devices from damage due to surges on data and PoE lines. All 8 wires are protected.

The input voltage and output voltage are isolated to avoid any grounding or negative voltage issues.

Features

  • Input Voltage 12VDC, 24VDC or 110VAC
  • Dual 802.3af/at outputs
  • High Power Output to 70W
  • Surge Protected to 15kV
  • Dual DC Inputs for Connecting 2 Power Sources
  • 10/100 Data Compatibility, Shielded Connectors
  • Short Circuit, Over Current and Reverse/Over Voltage Protection
  • Industrial Temperature Range, DIN Rail Mountable

Applications

  • 12VDC or 24VDC Remote Power Systems running on batteries
  • 110/220VAC Backup Power Systems
  • Power a Camera and Wireless using a single PoE Injector
  • Power a Wireless AP and Backhaul using a single PoE injector

Dimensions (LxWxH)

  • 125 x 75 x 38mm (4.9 x 3 x 1.5”)

Weight

  • 255g (4.7oz)

Technical Description

  • Input Voltage 90-264VAC 47-63hz
  • Input Connector IEC C13 (incl. Power Cord)
  • POE Specification Active PoE 802.3af/at (Mode B, 2 Pair)
  • Output Voltage (+/-2.5%) 56VDC
  • Ethernet Connectors RJ45 (Shielded) 10/100MB
  • Output Current (max) 0.45A X 2
  • Output Power (total) 50W
  • Self-Consumption Power 2W
  • Efficiency (min) 80%
  • Line Regulation, Ripple, Noise 1%
  • Load Regulation 5%
  • Surge Protection IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns) IEC61000-4-5 (Lightning) 20A (8/20µs)
  • Operating Temperature 25 to +50°C (-13 to 122°F)
  • Operating Humidity (RH) 5% - 90%
  • Storage Temperature -40 to +80°C (-40 to +176°F)

More Information

MFRPartNum:
TP-POE-HP-48Dx2
Datasheet:
