Tycon TPSK12/24M-340W Solar Kit 340W Solar Panel Pole Wall Mount Outdoor 12AWG Cable 12 24V MPPT Charge Controller

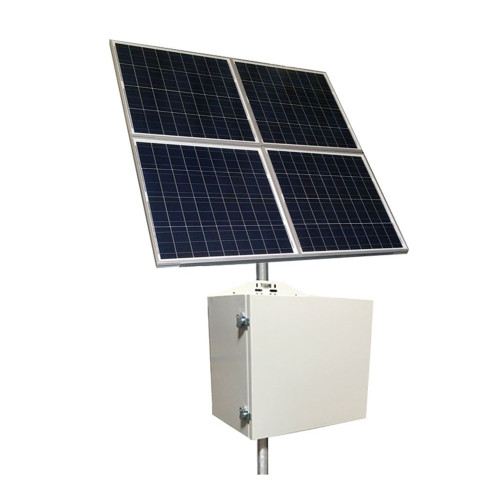

Tycon TPSK12/24M-340W Solar Kit

The TPSK series of solar panel kits come complete with high efficiency monocrystalline solar panel, side of pole/wall mounts, PWM or MPPT Charge Controller and outdoor rated 12AWG cable. They are ready for quick connection to Tycon Power® outdoor UPSPro® Systems or any other application requiring solar power. The panels provide excellent low light performance and long life (25years). The rugged aluminum frame and high transparency, low iron, tempered glass withstands high wind, hail and snow loading. The mounts are heavy duty aluminum with stainless steel hardware. They are a simplified design that makes them easy to install, saving precious installer time. The mounts are designed for pole mounting but can also be wall mounted. They provide quick tilt adjustment for positioning the panel to proper sun angles for summer and winter sun.

Key Features

• Complete Kit – Solar Panel, Pole/Wall Mount, Outdoor 12AWG Cable, Battery Charge Controller
• Accommodates 2' to 6' dia. Pole or Wall Mount
• Quick tilt adjustment (15° to 65°)
• Certified for up to 110MPH Winds

Applications

• Remote Power Stations
• Wireless Base Stations
• Lighting Applications
• Surveillance Applications

Technical Description

• Solar Panel Voltage/Capacity: 12V/24V 340W
• Solar Panel Max Current: 17.72A
• Solar Panel Size: 52” x 68”
• Solar Panel Model: TPS-12-85W x 4
• Pole Diameter: 2” to 6”
• Pole Mount Model: TPSM-80x4-UNI
• Wind Speed Rating: 90MPH
• Charge Controller Model: TP-SC24-30NMPPT
• Cable – 2 Cond – Outdoor: 12AWG x 20’
• Operating Temperature: -40C to +85C
• Shipping Weight: 36kg (79lb)

Included Parts

• 30W and 85W Kit Mount System
• 12V / 24V Intelligent Solar Charge Controller
• 12V / 24V 30A MPPT Solar Charge Controller
• 20’ Outdoor Rated 12AWG Cable
