PRODUCT SPECIFICATIONS
SKU: AF60-US - 60 GHz PtP radio system with 5 GHz backup.

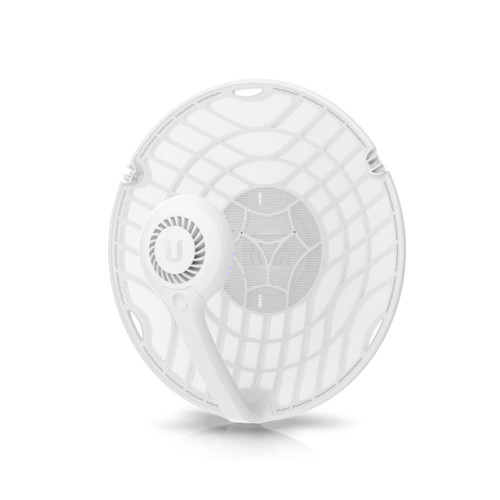

The airFiber 60 equipped with a high-gain dish antenna and 5GHz backup radio establishes sustainable PtP links and deliver a 1.9 Gbps throughput rate. It also has a dedicated Bluetooth management radio so it can be set up quickly and fully configured with the UISP® application (web/mobile). It can also be seamlessly integrated into an existing deployment with Ubiquiti’s dedicated link planning platform and tracked from anywhere with its built-in GPS antenna.
Note. This product should be purchased in pairs in order to form links.
Features
- 60 GHz PtP radio system with 5 GHz backup.
- 2+ km link range
- 1.9 Gbps max. throughput
- (1) GbE RJ45 port
- Precision alignment mount
- Integrated GPS & Bluetooth
Dimension (L×W×H)
- 413 x 413 x 320 mm (16.26 x 16.26 x 12.60")
Weight
- Without mount: 1.4 kg (3.09 lb)
- With mount: 1.8 kg (3.97 lb)
Compatibilities
- International version
Technical Description
- Mechanical
- Enclosure materials: Aluminum, UV-stabilized polycarbonate
- Mount: Pole mount (included)
- Wind loading: 420 N at 200 km/h (94.4 lbf at 125 mph)
- Wind survivability: 200 km/h (125 mph)
- Hardware
- Networking interface: (1) 10/100/1000 MbE RJ45 port
- Power method: Passive PoE (pins 4, 5+ and 7, 8-)
- Power supply: 24V DC, 0.5A Gigabit PoE adapter (included)
- Voltage range: 22—26VDC
- Max. power consumption: 11W
- Antenna gain
- 5 GHz: 11 dBi
- 60 GHz: 38 dBi
- ESD/EMP protection: Air/contact: ± 24kV
- GPS: Yes
- LEDs: Power/Ethernet/5G/60G/GPS
- Operating temperature: -40 to 60° C (-40 to 140° F)
- Operating humidity: 5 to 95% noncondensing
- Certifications: FCC, IC, CE
- Software
- OS: airOS®
- Maximum throughput: 1.9 Gbps
- Maximum range: 2+ km
- Encryption: WPA2-PSK (AES)/WPA2 Enterprise
- Management interface: UISP application (web/mobile)
- Minimum software requirements: Any modern web browser/iOS™ or Android™ based smartphone
- Radio
- Max. conducted TX power 5/60 GHz combined: 25 dBm
- Channel bandwidth*
- 60 GHz: 2160, 1080* MHz
- 5 GHz: 20/40/80 MHz
- * Depends on regulatory region.
- Operating Frequency (Mhz)
- US/CA
- U-NII-1: 5150 – 5250 Mhz
- U-NII-3:
- 5725 – 5850 Mhz
- 57,000 – 66,000 Mhz
- Worldwide:
- 5180 - 5875 Mhz
- 57,000 - 66,000 Mhz
- US/CA
- Management Radio (MHz)
- Worldwide: 2412 - 2472 Mhz
- US/CA: 2412 - 2462 Mhz
