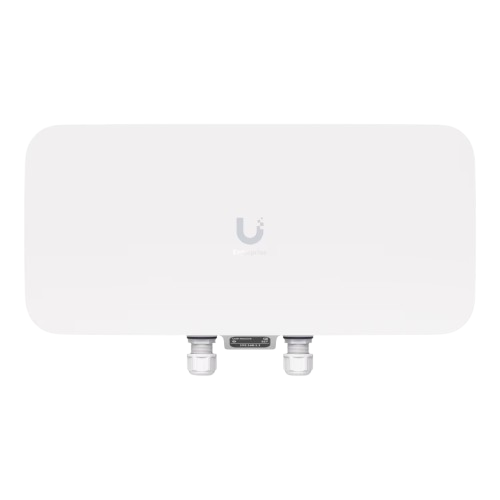

Ubiquiti E7-Audience WiFi 7 AP Tri-Radio 5 6 GHz 10GbE 1500+ Clients IP68 Outdoor

Ubiquiti E7-Audience

Enterprise-grade, indoor/outdoor access point designed for high-density environments with 12-stream 5 GHz and 6 GHz WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.

Note: Long-range 6 GHz performance with AFC available in FCC/IC region only.

Key Features

• 12-stream WiFi 7 access point
• Tri-radio 5/6 GHz
• 10GbE uplink
• 1,500+ connected devices
• 465+m (5000+ft) open space coverage

Technical Specification

• Overview:
  • Dimensions:
    • Device: 474.1 x 265.5 x 42.2 mm (18.7 x 10.5 x 1.7')
    • Bracket: 150.4 x 113.6 x 125 mm (5.9 x 4.5 x 4.9')
  • WiFi Standard: WiFi 7
  • Spatial Streams: 12
  • Coverage Area: 465 m² (5,000 ft²)
  • Max. Client Count: 1500+
  • Uplink:
    • 10 GbE
    • 1 GbE
  • Mounting: Wall, Pole (Mounts Included), VESA (Optional)
  • Weatherproofing: IP68
  • Power Method: PoE++
• Performance:
  • MIMO:
    • 6 GHz: Low / High band: 4 x 4 (DL/UL MU-MIMO)
    • 5 GHz: 4 x 4 (DL/UL MU-MIMO)
  • Max. Data Rate:
    • 6 GHz: Low / High band: 11.5 Gbps (BW320)
    • 5 GHz: 8.6 Gbps (BW240)
  • Antenna Gain:
    • 6 GHz:
      • Directional internal: 15 dBi, 50° x 50°
      • Directional internal: 11 dBi, 90° x 90°
    • 5 GHz:
      • Directional internal: 15 dBi, 50° x 50°
      • Directional internal: 11 dBi, 90° x 90°
  • Max. TX Power
    • 6 GHz:
      • Low / High band: 30 dBm
      • (36 dBm EIRP)
    • 5 GHz: 30 dBm
  • Max. BSSIDs: 8 per Radio
  • Supported Data Rates:
    • 802.11be (WiFi 7): 7.3 Mbps to 11.5 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
    • 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
    • 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
    • 802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
• Features:
  • Wireless Meshing: ✓
  • Band Steering: ✓
  • 802.11v BSS Transition Management: ✓
  • 802.11r Fast Roaming: ✓
  • 802.11k Radio Resource Management (RRM): ✓
  • Zero-Wait DFS: ✓
  • Advanced Radio Management: ✓
  • Real-Time Spectral Analysis: ✓
  • Passpoint (Hotspot 2.0): ✓
  • Captive Hotspot Portal:
    • Custom Branding Landing Page: ✓
    • Voucher Authentication: ✓
    • Payment-Based Authentication: ✓
    • External Portal Server Support: ✓
    • Password Authentication: ✓
    • Guest Network Isolation: ✓
  • Private Pre-Shared Key (PPSK): ✓
  • WiFi Speed Limiting: ✓
  • Client Device Isolation: ✓
  • WiFi Schedules: ✓
  • RADIUS over TLS (RadSec): ✓
  • Dynamic RADIUS-assigned VLAN: ✓
• Hardware:
  • Max. Power Consumption: 51W
  • Supported Voltage Range: 42.5—57V DC
  • Networking Interface:
    • (1) 10 GbE RJ45 port
    • (1) GbE RJ45 port
  • PRISM™ RF Filtering: ✓
  • Weight:
    • Device: 3.3 kg (7.3 lb)
    • With mount: 4.3 kg (9.5 lb)
  • Wind Loading: 164.75 N at 200 km/h (37 lbf at 125 mph)
  • Pole Mount Diameter: 1~3' (25~76 mm)
  • Antennas: (1) Internal with directional patterns
  • Management: Ethernet
  • Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
  • Mount Material: Aluminum alloy
  • LEDs:
    • System: R/G/B
  • Channel Bandwidth: VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
  • NDAA Compliant: ✓
  • Certifications: FCC, IC
  • Operating Frequency:
    • 5150 - 5725 MHz
    • 5925 - 7125 MHz
  • Ambient Operating Temperature: -40 to 60° C (-40 to 140° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing
• Software:
  • Application Requirements:
    • UniFi Network: Version 9.2.87 and later
    • Mobile App:
      • iOS™ version 10.24.1 and later
      • Android™ version 10.25.2 and later
