Ubiquiti

Part:
ES-48-500W

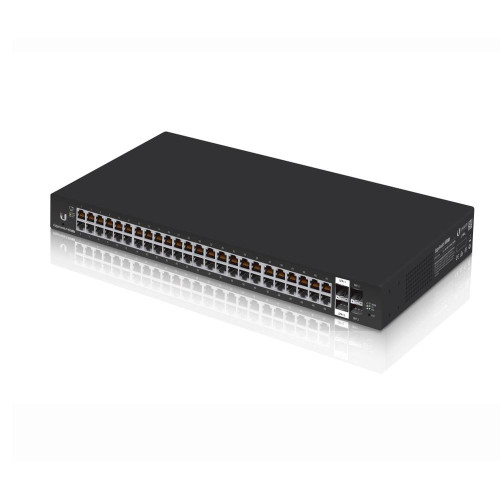

Ubiquiti UISP ES-48-500W EdgeSwitch 48-Port Gigabit Switch

$899.00
Condition:
New

PRODUCT SPECIFICATIONS

Layer 2/3, PoE+ switch with (48) Gigabit RJ45 ports, (2) SFP+ ports, (2) SFP ports, and a 500W power supply.

Advanced Switching Technology for the Masses. Build and expand your network with Ubiquiti EdgeSwitch™, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Features

  • (48) GbE RJ45 ports
  • (2) SFP and (2) SFP+ ports
  • 500W total PoE availability
  • Rack-mountable, 1U

Technical Description

  • Mechanical
    • Dimensions:  485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75")
    • Weight:  6.1 kg (13.5 lb)
  • Hardware
    • Networking Interfaces
      • (48) 10/100/1000 Mbps RJ45 Ethernet Ports
      • (2) 1/10 Gbps SFP+ Ethernet Ports
      • (2) 1 Gbps SFP Ethernet Ports
    • Management Interface
    • (1) RJ45 Serial Port, Ethernet In/Out Band
    • Total Non-Blocking Throughput: 70 Gbps
    • Switching Capacity: 140 Gbps
    • Forwarding Rate: 104.16 Mpps
    • Max. Power Consumption
      • Includes PoE Output - 500W
      • Excludes PoE Output - 64W
    • Power Method: 100-240VAC/50-60 Hz, Universal Input
    • Power Supply: AC/DC, Internal, 500W DC
    • LEDs Per Port
      • RJ45 Data Ports - PoE, Speed/Link/Activity
      • SFP+/SFP Data Ports - Speed/Link/Activity
    • Rackmount : Yes, 1U High
    • ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV
    • Shock and Vibration: ETSI300-019-1.4 Standard
    • Operating Temperature: -5 to 40° C (23 to 104° F)
    • Operating Humidity: 5 to 95% Noncondensing
    • Certifications: CE, FCC, IC
  • PoE Per Port
    • PoE Interfaces
      • PoE/PoE+ (Pins 1, 2+; 3, 6-)
      • 24VDC Passive PoE (Pins 4, 5+; 7, 8-)
    • Max. PoE+ Wattage per Port by PSE: 34.2W
    • Voltage Range PoE+ Mode: 50–57V
    • Max. Passive PoE Wattage per Port: 17W
    • 24V Passive PoE Voltage Range: 20-27V

More Information

MFRPartNum:
ES-48-500W
