PRODUCT SPECIFICATIONS

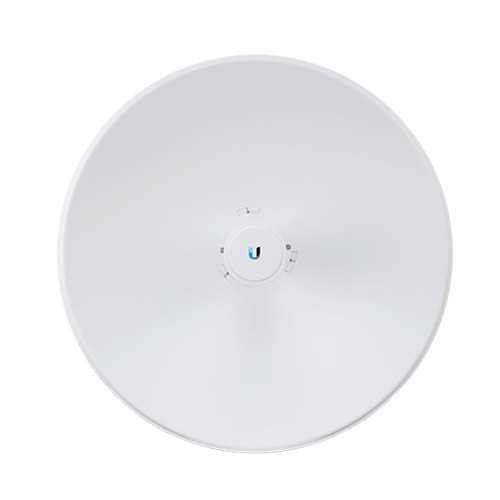

Compact UISP-Ready 5 GHz WiFi Bridge with Enhanced Surge Protection and Optimized Performance
The sleek, compact design of this 5 GHz WiFi bridge offers exceptional performance with advanced features such as enhanced surge protection and a newly optimized radio and antenna. Designed with flexibility and ease of use in mind, it includes a ball-joint mount for easy alignment and installation. The integrated management WiFi radio and support for the UISP mobile app allow for fast, straightforward setup and management, making this bridge ideal for a variety of point-to-point and point-to-multipoint applications.
This airMAX ac CPE, built with Ubiquiti's proprietary airMAX ac chipset, provides superior connectivity and performance in outdoor wireless networks. This device is built to withstand tough conditions and deliver reliable, high-speed wireless connectivity with the latest advancements in WiFi and radio technology.
Features:
- Enhanced Antenna Design: New and improved antenna design with enhanced radio capabilities.
- Surge Protection: Upgraded surge protection to defend against external elements.
- Management WiFi Radio: Integrated management WiFi radio for convenient mobile setup via the UISP app for Android and iOS.
- AirOS 8: Built on Ubiquiti's advanced AirOS 8 software platform for reliable operation and control.
- Flexible Mounting: Easy installation with a pole mount kit included, and adjustable alignment with ball-joint pivot.
Applications:
- Point-to-point (PtP) wireless links
- Point-to-multipoint (PtMP) network deployments
- Wireless bridge applications in outdoor environments
Compatibilities
- International version
Technical Description
- Dimensions: 189 x 189 x 125 mm (7.44 x 7.44 x 4.92')
- Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
- Max. Power Consumption: 8.5W
- Gain: 19 dBi
- Networking Interface: (1) 10/100/1000 Ethernet Port for data, plus WiFi for management
- Processor: Atheros MIPS 74Kc, 720 MHz
- Memory: 128 MB DDR2, 8 MB Flash
- Channel Sizes:
- PtP Mode: 10/20/30/40/50/60/80 MHz
- PtMP Mode: 10/20/30/40 MHz
- Max. VSWR: 1.5:1
- Polarization: Dual linear
- Enclosure Material: UV-stabilized plastic for outdoor durability
- ESD/EMP Protection: ± 24kV air/contact protection
- Mounting: Includes pole mount kit (wall mount sold separately)
- Wind Loading: 45.4 N at 200 km/h (10.2 lbf at 125 mph)
- Wind Survivability: Up to 200 km/h (125 mph)
